Tripp Lite PDUMH15-ISO 1.44kW Single-Phase Metered PDU + Isobar Surge Suppression, 3840 Joules, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 1U Rack-Mount
Tripp Lite PDUMH15-ISO 1.44kW Single-Phase Metered PDU + Isobar Surge Suppression, 3840 Joules, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 1U Rack-Mount
- MPN: PDUMH15-ISO
- UPC: 037332183248
- PPN: TRP-PDUMH15-ISO
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$448.23/ EA
Description
1.44kW Single-Phase Metered PDU + Isobar Surge Suppression, 3840 Joules, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 1U Rack-Mount
Features
- Metered single phase 15A 120V PDU with Isobar Surge Suppression

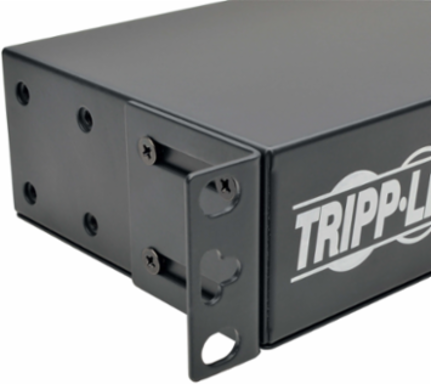

- 1U Horizontal rackmount, Digital current meter
- 3840 Joule suppression rating, Diagnostic LEDs

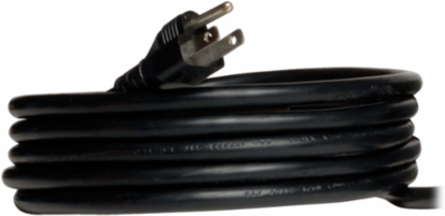

- NEMA 5-15P input; 15ft / 4.5m line cord
- 14 NEMA 5-15R outlets (2 front / 12 rear)
- Reversible housing; 4.5in /11.4cm depth
- 2-year limited warranty
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 3840
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- AC Suppression Surge Current Rating
- 60,000 amps
- Immunity
- Conforms to IEEE 587 / ANSI C62.41
AC Suppression Response TimeNM = 0 ns. CM = <1 ns
Clamping Voltage (RMS)140
EMI / RFI Filtering40-80 dB
Automatic Shut-OffYes
Certifications
- Certifications
- Tested to UL1449 3rd Edition (USA) and CSA (Canada), RoHS Compliant
Physical
- Form Factors Supported
- 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
- Minimum Required Rack Depth (inches)
- 7.5
- Shipping Dimensions (hwd / in.)
- 2.25 x 20.50 x 10.00
- Unit Dimensions (hwd / in.)
- 1.75 x 17.5 x 4.5
Material of ConstructionSheet Metal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)5.20
Unit Weight (lbs.)4.6
User Interface, Alerts & Controls
- Front Panel LCD Display
- Two digit current meter reports PDU output load in amps
- Switches
- No power switch
Front Panel LEDsSet of 3 diagnostic LEDs continuously report status for LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green)
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 15
- PDU Plug Type
- NEMA 5-15P
- Input Cord Length (ft.)
- 15
Recommended Electrical Service15A 120V; For best results, connect the PDU only to true sine wave mains, generator or UPS power source (avoid connecting to UPS systems producing modified sine wave, PWM sine wave and other non-sinusoidal waveforms)
Maximum Input Amps DetailsAgency de-rated to 12A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (14) 5-15R
- Overload Protection
- 15A Breaker
Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage100; 120; 127
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
- Operating Elevation (ft.)
- 0-10,000
Relative Humidity5-95% non-condensing
Operating Elevation (m)0-3000
Overview
- UPC Code
- 037332183248
PDU TypeMetered
Special Features
- TVSS Grounding
- Rear grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
