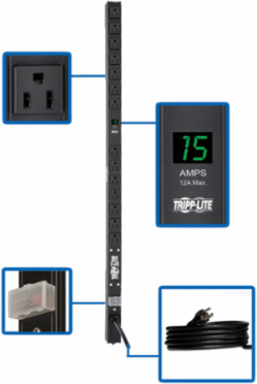

Tripp Lite PDUMV15-36 1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.

1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.
1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.
1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.
1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.
1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.
1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.
1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.
1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.
  • MPN: PDUMV15-36
  • UPC: 037332182869
  • PPN: TRP-PDUMV15-36

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$336.54/ EA

Description

1.4kW Single-Phase Metered PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical, 36 in.

Features

  • Metered single phase 15A 120V 0U 36in / 91cm vertical rackmount PDU

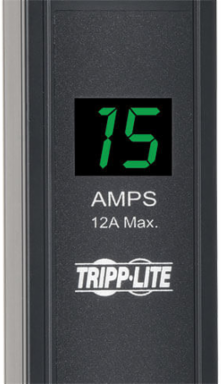

  • Two-digit current meter reports output current in amps

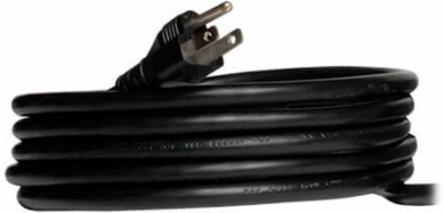

  • Attached 15ft / 4.5m cord with NEMA 5-15P input plug

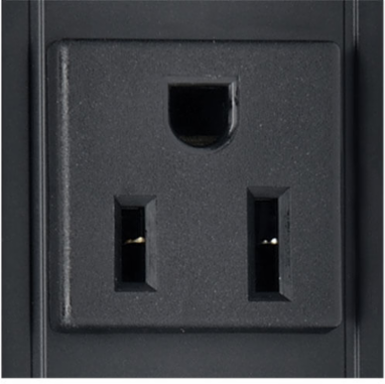

  • 14 NEMA 5-15R outlets

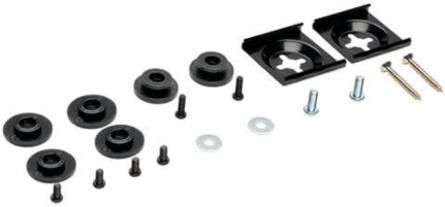

  • Toolless button mount and bolt-down bracket installation hardware included
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to UL60950-1 (USA) and CSA60950-1 (Canada), NOM (Mexico), Class A (Emissions), RoHS Compliant

Physical

Form Factors Supported
Vertical (0U) mounting in rack enclosures, horziontal mount in raceways and a variety of other applications
PDU Form Factor
Vertical (0U)
Shipping Weight (lbs.)
3.79
Unit Weight (lbs.)
3.2
Material of ConstructionAluminum
Shipping Dimensions (hwd / in.)2.21 x 38.93 x 5.56
Unit Dimensions (hwd / in.)36 x 1.75 x 1.25

User Interface, Alerts & Controls

Front Panel LCD Display
Digital meter reports PDU output current in amps
SwitchesLighted on/off switch with integrated safety cover

Input

PDU Input Voltage
100; 120; 127
Maximum Input Amps
15
PDU Plug Type
NEMA 5-15P
Input Cord Length (ft.)
15
Recommended Electrical Service15A 120V
Maximum Input Amps DetailsAgency de-rated to 12A continuous
Input PhaseSingle-Phase

Output

Frequency Compatibility
50 / 60 Hz
Output Capacity Details
1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage
100; 120; 127
Output (VA)1800
Output Receptacles(14) 5-15R
Overload Protection15A circuit breaker

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing

Overview

UPC Code
037332182869
PDU TypeMetered

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty

Downloads
