Tripp Lite PDUMV20-36 Metered PDU 1.9kW, 36 Inch Vertical, 14 NEMA 5-15/20R Outlets, 15ft Cord
- MPN: PDUMV20-36
- UPC: 037332182821
- PPN: TRP-PDUMV20-36
CAD
$434.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

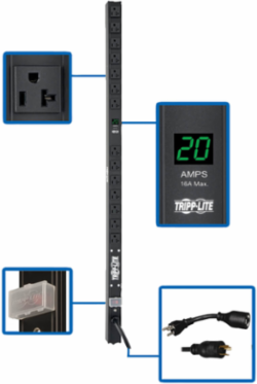

Metered PDU 1.9kW, 36 Inch Vertical, 14 NEMA 5-15/20R Outlets, 15ft Cord
Features
- Metered single phase 120V 20A 0U 36-in. / 91.4cm vertical rackmount PDU

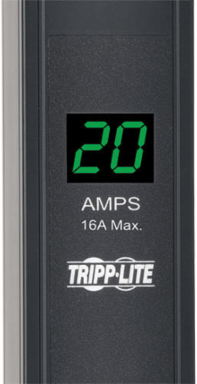

- Two-digit current meter reports output current in amps

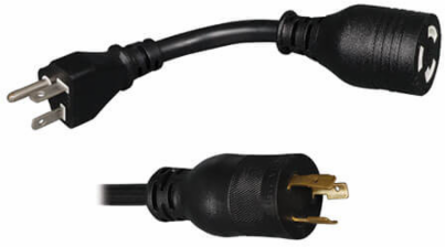

- Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter

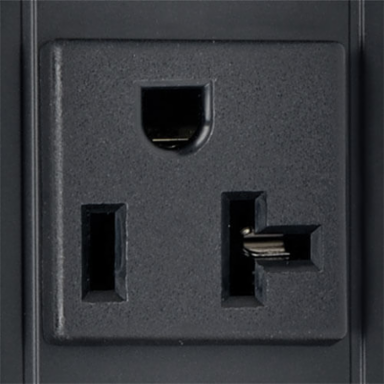

- 14 NEMA 5-15/20R outlets

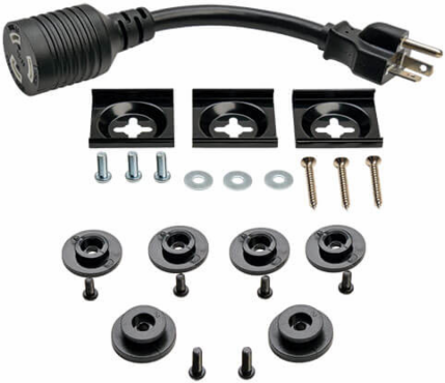

- Toolless button mount and bolt-down bracket installation hardware included
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Output Capacity
- 2.03 kW (127V), 1.92 kW (120V), 1.6 kW (100V) / 20A total capacity (de-rated to 16A continuous); 16A max per outlet
- Amperage
- 20A (de-rated to 16A continuous)
- Frequency Compatibility
- 50 / 60 Hz
- PDU Plug Type
- NEMA 5-20P; NEMA L5-20P with 5-20P adapter
- Form Factor
- Vertical (0U)
- Weight
- 4.19 lbs (1.9 kg)
- Overload Protection
- 20A circuit breaker
- Display
- Digital meter reports PDU output current in amps
- Certifications
- UL 60950-1, CAN/CSA-C22.2 No.60950-1, NOM, FCC Class A, RoHS Compliant
Voltage100, 120, 127 V
PhaseSingle-Phase
Output Receptacles14 NEMA 5-15/20R
Input Cord Length15 ft (4.6 m)
Dimensions (H x W x D)36.47 x 1.5 x 1.64 in (92.6 x 3.81 x 4.17 cm)
MaterialAluminum
MountingToolless button mount, bolt-down brackets included
Storage Temperature Range-30°C to +50°C (-22°F to +122°F)
