Tripp Lite PDUMV20-24 1.9kW Metered Vertical PDU, 120V, 6 Outlets, 15ft Cord

MPN: PDUMV20-24
UPC: 037332182845
PPN: TRP-PDUMV20-24

$401.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

1.9kW Metered Vertical PDU, 120V, 6 Outlets, 15ft Cord

Features

Metered single phase 120V 20A 0U 24-in. / 61cm vertical rackmount PDU

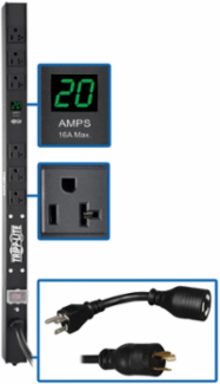

Two-digit current meter reports output current in amps

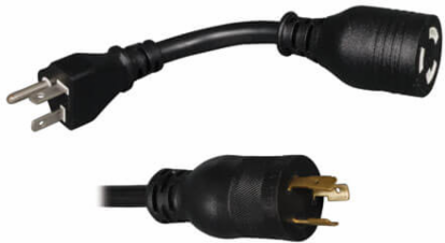

Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter

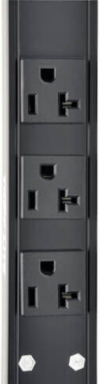

6 NEMA 5-15/20R outlets

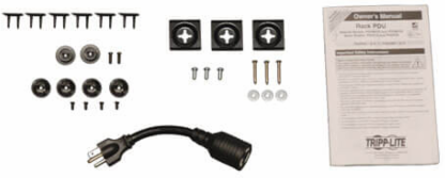

Toolless button mount and bolt-down bracket installation hardware included
2-year limited warranty

Documentation & Downloads

Specifications

Additional

Output Capacity Details	2.03 kW (127V), 1.92 kW (120V), 1.6 kW (100V) / 20A total capacity; agency de-rated to 16A continuous; 16A max per outlet
Output Current	20A total capacity; agency de-rated to 16A continuous
Frequency Compatibility	50/60 Hz
Length	24.47 in
Depth	1.5 in
Input Cord Length	15 ft (4.6 m)
Input Plug Type	NEMA 5-20P; NEMA L5-20P
Material	Aluminum
Storage Temperature Range	-30 C to +50 C (-22 F to +122 F)
Switches	Lighted on/off switch with transparent safety cover

Voltage	100 V; 120 V; 127 V
Overload Protection	20A circuit breaker
Input Phase	Single-Phase
Width	1.64 in
PDU Form Factor	Vertical (0U)
Weight	3.52 lbs (1.6 kg)
Output Receptacles	(6) NEMA 5-15/20R
Certifications	UL 60950-1, CAN/CSA-C22.2 No.60950-1, NOM, FCC Class A, RoHS Compliant

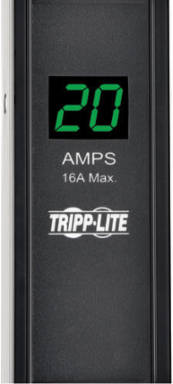

Digital Meter	Two-digit display reporting output current in amps
UPC Code	037332182845
