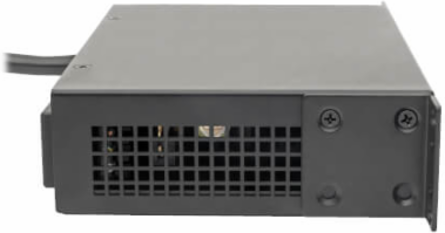

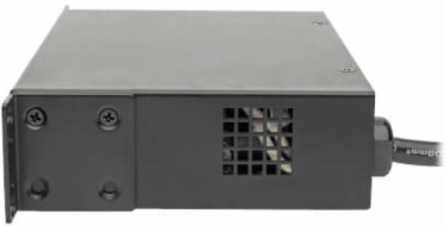

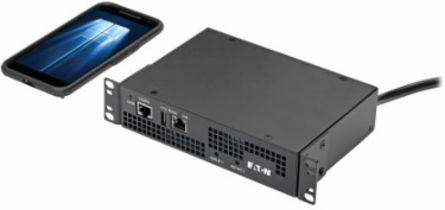

Tripp Lite PDU15NETLX 1.4kW 100/120/127V Single-Phase Switched Mini PDU – LX Platform Interface, 6 ft. Cord, 0U, TAA
Tripp Lite PDU15NETLX 1.4kW 100/120/127V Single-Phase Switched Mini PDU – LX Platform Interface, 6 ft. Cord, 0U, TAA
- MPN: PDU15NETLX
- UPC: 037332203267
- PPN: TRP-PDU15NETLX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$537.36/ EA
Description
1.4kW 100/120/127V Single-Phase Switched Mini PDU – LX Platform Interface, 6 ft. Cord, 0U, TAA
Features

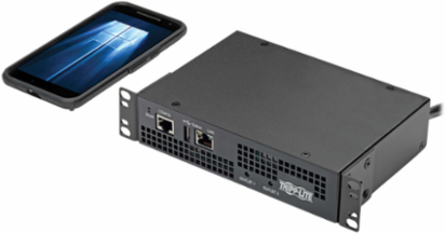

- Built-in LX Platform interface allows full remote access 24/7 with email notifications
- Auto Probe for Autonomous Device Management

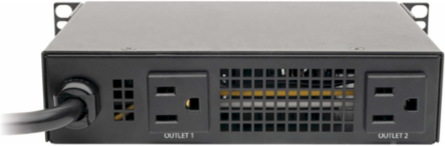

- 2 switched NEMA 5-15R outlets can be remotely rebooted, locked or shut down
- NEMA 5-15P input with 6 ft. cord connects to mains power, generator or UPS system

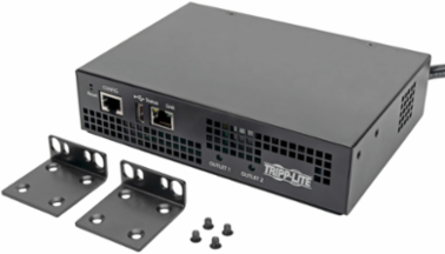

- Mounts on wall, under counter or in 0U of rack space using included brackets
- Ideal low-cost option for small-scale installations requiring no more than 2 outlets
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Switched PDU Provides Advanced Network Control and Remote Power Monitoring
- Built-In LX Platform Network Interface Offers 24/7 Access
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Easy Connection to an AC Power Source
- Flexible Installation Options
- TAA-Compliant for GSA Schedule Purchases
- 2-Year Warranty and Environmentally Responsible Design
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA). CSA (Canada), Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported
- 0u rackmount, Wall-mount, Under-counter mount
- Minimum Required Rack Depth (inches)
- 7
- Shipping Dimensions (hwd / in.)
- 1.97 x 8.35 x 8.07
- Unit Dimensions (hwd / in.)
- 1.73 x 7 x 5
Material of ConstructionMetal
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)2.97
Unit Weight (lbs.)2.64
User Interface, Alerts & Controls

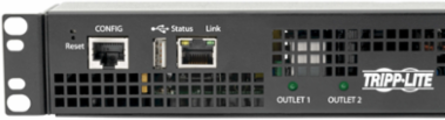

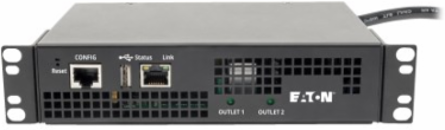

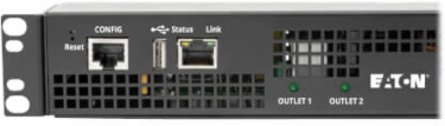

- Front Panel LEDs
- Set of two front-panel LEDs indicate off/on power status for each outlet. Ethernet Link and Status LED's for network activity. System status LED for monitoring system operation.
SwitchesReset button allows reboot of management card without affecting connected equipment.
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 15.0
- PDU Plug Type
- NEMA 5-15P
- Input Cord Length (ft.)
- 6
Recommended Electrical Service15A 120V
Maximum Input Amps DetailsAgency de-rated to 12A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz

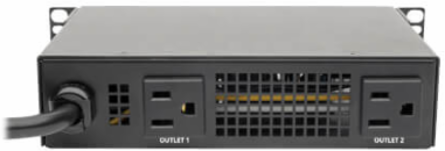

- Output Receptacles
- (2) 5-15R
- Overload Protection
- n/a
Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage100; 120; 127
Customized Load Management Receptacles2 individually switched output receptacles
Communications
- Network Monitoring Port Description
- LX platform interface provides remote monitoring via Java-free HTML5 web interface, Telnet, SSH and SNMP management systems.
- SNMP Compatibility
- SNMP V1, v2c, V3
- Communications Interface

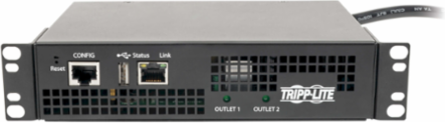

- (1) RJ45 Network; (1) RJ45 Serial; (1) USB-A
Network Monitoring PortRJ45 Network port, RJ45 Serial Config/Console Access port; and USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
Network Speed10/100 Mbps
Environmental
- Operating Temperature Range
- 32 to 122F (0 to 50C)
- Relative Humidity
- 5 to 95% (non-condensing)
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Overview
- UPC Code
- 037332203267
PDU TypeSwitched
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
