Tripp Lite PDUMV15-24 1.4kW Single-Phase Metered PDU, 120V Outlets (8 5-15R), 5-15P, 15ft Cord, 0U Vertical, 24 in.

MPN: PDUMV15-24
UPC: 037332182852
PPN: TRP-PDUMV15-24

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$321.48/ EA

Qty:

Loading add to cart quantity...

Description

1.4kW Single-Phase Metered PDU, 120V Outlets (8 5-15R), 5-15P, 15ft Cord, 0U Vertical, 24 in.

Features

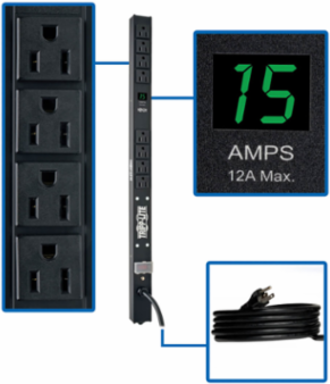

Metered single phase 15A 120V 0U 24in / 61cm vertical rackmount PDU
Two-digit current meter reports output current in amps

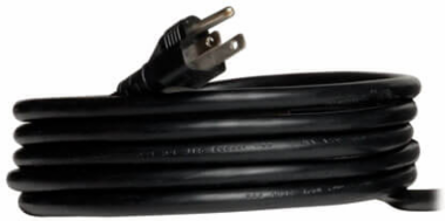

Attached 15ft / 4.5m cord with NEMA 5-15P input plug

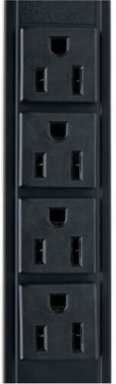

8 NEMA 5-15R outlets

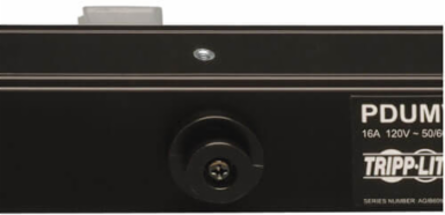

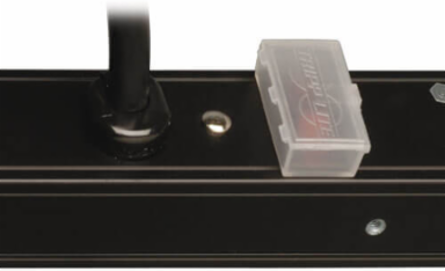

Toolless button mount and bolt-down bracket installation hardware included
2-year limited warranty

Specifications

Certifications

Certifications: Tested to UL60950-1 (USA) and CSA60950-1 (Canada), NOM (Mexico), Class A (Emissions), RoHS Compliant

Physical

Form Factors Supported: Vertical (0U) mounting in rack enclosures, horziontal mount in raceways and a variety of other applications

PDU Form Factor: Vertical (0U)

Shipping Weight (lbs.): 3.40

Unit Weight (lbs.): 2.65

Material of ConstructionMetal

Shipping Dimensions (hwd / in.)1.90 x 5.40 x 27.10

Unit Dimensions (hwd / in.)24 x 1.75 x 1.25

User Interface, Alerts & Controls

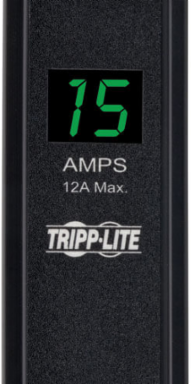

Front Panel LCD Display: Digital meter reports PDU output current in amps

SwitchesLighted on/off switch with integrated safety cover

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 15

PDU Plug Type: NEMA 5-15P

Input Cord Length (ft.): 15

Recommended Electrical Service15A 120V

Maximum Input Amps DetailsAgency de-rated to 12A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (8) 5-15R

Overload Protection: 15A circuit breaker

Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet

Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)

Relative Humidity5-95% non-condensing

Overview

UPC Code: 037332182852

PDU TypeMetered

Warranty

Product Warranty Period (Worldwide): 2-year limited warranty
