Tripp Lite

Tripp Lite PDUV20 1.9kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input with 5-20P Adapter, 15 ft. Cord, 0U Vertical

1.9kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input with 5-20P Adapter, 15 ft. Cord, 0U Vertical
1.9kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input with 5-20P Adapter, 15 ft. Cord, 0U Vertical
1.9kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input with 5-20P Adapter, 15 ft. Cord, 0U Vertical
1.9kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input with 5-20P Adapter, 15 ft. Cord, 0U Vertical
1.9kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input with 5-20P Adapter, 15 ft. Cord, 0U Vertical
1.9kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input with 5-20P Adapter, 15 ft. Cord, 0U Vertical
1.9kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input with 5-20P Adapter, 15 ft. Cord, 0U Vertical
  • MPN: PDUV20
  • UPC: 037332143402
  • PPN: TRP-PDUV20

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$334.23/ EA

Description

Delivers 120V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Recommended for data centers, server rooms and network wiring closets.

Features

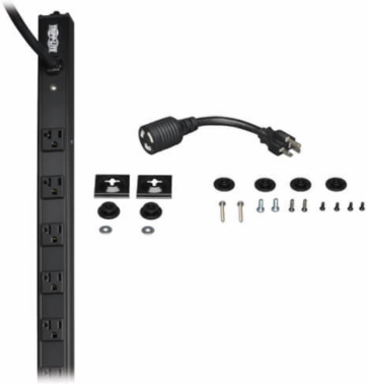

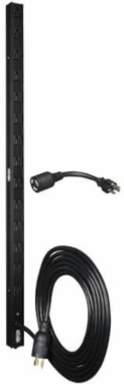

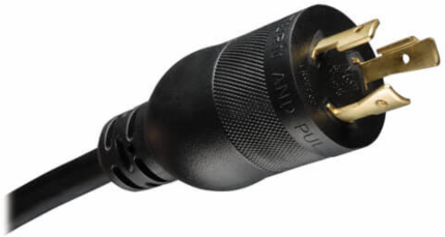

  • NEMA L5-20P input with 15 ft. cord and 5-20P adapter
  • 14 NEMA 5-15/20R outlets
  • Switchless design prevents accidental shutdown
  • 36 in. all-metal housing

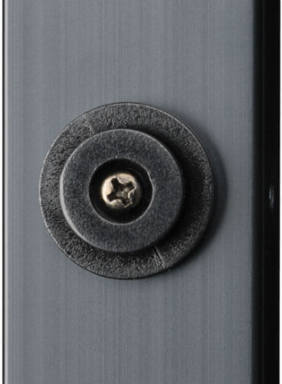

  • Supports toolless 0U vertical mounting
  • 5-year limited warranty

Specifications

Certifications

Certifications
Tested to UL 60950-1: 2007 R10.14 (USA) and CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 (Canada), NOM (Mexico), RoHS Compliant

Physical

Form Factors Supported
Vertical (0U) mounting in rack enclosures, horizontal mount in raceways and a variety of other applications
PDU Form Factor
Vertical (0U)
Shipping Weight (lbs.)
4.66
Unit Weight (lbs.)
4.01
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)39.76 x 4.61 x 2.40
Unit Dimensions (hwd / in.)36.47 x 1.5 x 1.64

User Interface, Alerts & Controls

Switches
n/a

Input

PDU Input Voltage
100; 120; 127
Maximum Input Amps
16
Input Phase
Single-Phase
Recommended Electrical Service20A 120V
PDU Plug TypeNEMA 5-20P; NEMA L5-20P
Input Cord Length (ft.)15

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(14) 5-15/20R
Overload Protection

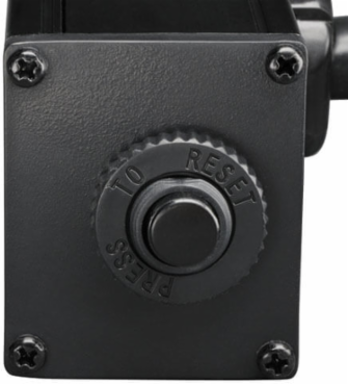

20A circuit breaker
Output Capacity Details2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per 5-15/20R outlet
Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Operating Elevation (ft.)
0-10,000
Relative Humidity5 to 95% non-condensing
Operating Elevation (m)0-3000

Overview

UPC Code
037332143402
PDU TypeBasic

Warranty

Product Warranty Period (Worldwide)
5-year limited warranty
