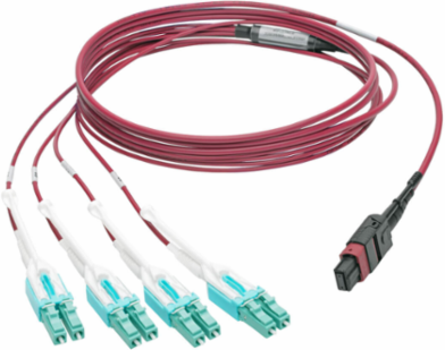

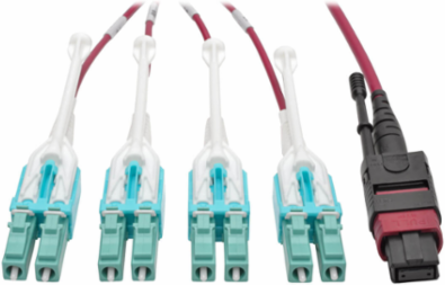

Tripp Lite N845-02M-8L-MG 2M MTP/MPO to 8xLC Fan-Out Patch Cable, 40Gb, OM4, Plenum-Rated, Magenta
- MPN: N845-02M-8L-MG
- UPC: 037332200051
- PPN: TRP-N845-02M-8L-MG
CAD
$411.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

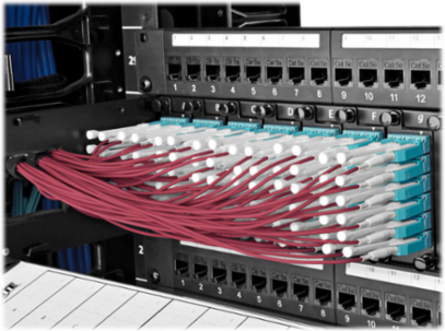

Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch. Designed for high-density connections between 40GBASE-SR4 network equipment.
Features

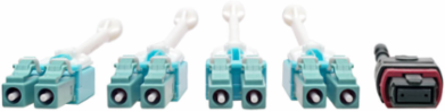

- Push/pull tab connectors install/remove with one hand
- Plenum-rated jacket for connecting in ceilings, walls and ducts
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- Magenta color for easy OM4 identification
- Slim, space-saving uniboot design for neat cable management
- Premium-grade ceramic ferrule designed for fast applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Data Rate | 10Gbps / 40Gbps / 100Gbps |
|---|---|
| Operating Temperature Range | -20 to 60 C (-4 to 140 F) |
| Number of Fibers | 12 |
| Clad Diameter | 125 micron |
| Side B Connector | 8 male LC duplex with push/pull tab |
| Optical Mode | OM4 |
| Technology | Multimode; MTP/MPO |
| Housing Material | Plastic |
| Warranty | Lifetime limited |
| Cable Length | 78.7 in. (6.6 ft) |
|---|---|
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Core Diameter | 50 micron |
| Side A Connector | 12-strand MTP (female) |
| Fiber Type | Multimode |
| Push/Pull Tabs | Yes |
| Cable Color | Magenta |
| Ferrule Material | Premium-grade ceramic |
