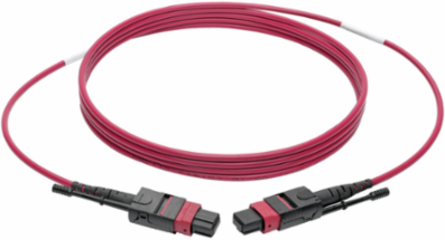

Tripp Lite N845-02M-12-MG 12-Fiber MTP/MPO Multimode Patch Cable, 2M (6.6 ft), OM4, Magenta
- MPN: N845-02M-12-MG
- UPC: 037332200273
- PPN: TRP-N845-02M-12-MG
CAD
$365.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

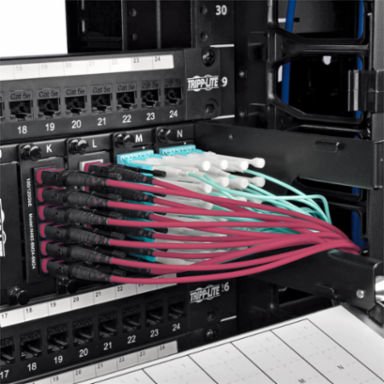

Premium multimode fiber optic cabling for transmitting 40/100 Gb data and voice signals over short distances. Designed for high-density connections between network equipment in telecom rooms and data centers.
Features
- Push/pull tab connectors install/remove with one hand

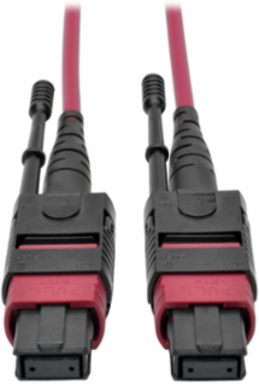

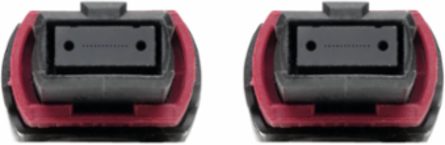

- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- 50/125 OM4-rated multimode fiber
- Magenta color for easy OM4 identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Network Speed | 10 Gbps / 40 Gbps / 100 Gbps |
|---|---|
| Attenuation @ 1300 nm | 1.0 dB/km |
| Operating Temperature Range | -20 to 60 C (-4 to 140 F) |
| Cable Length | 2 m (6.6 ft, 78.7 in) |
| Clad Diameter | 125 micron |
| Connector Type | 12-Strand MTP/MPO Female |
| Push/Pull Tabs | Yes |
| Color | Magenta |
| Attenuation @ 850 nm | 3.0 dB/km |
|---|---|
| Number of Fibers | 12 fibers |
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Core Diameter | 50 micron |
| Fiber Type | OM4 multimode |
| Cable Jacket | Plenum rated |
| Technology | Multimode; MTP/MPO |
| Warranty | Lifetime limited warranty |
