Tripp Lite N484-3M8L12S 40/100Gb Singlemode Fiber Breakout Cassette, 12 Ports, 8-Fiber MTP/MPO to LC Duplex 8.3/125
- MPN: N484-3M8L12S
- UPC: 037332205759
- PPN: TRP-N484-3M8L12S
CAD
$1209.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

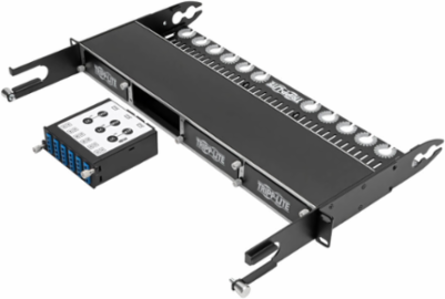

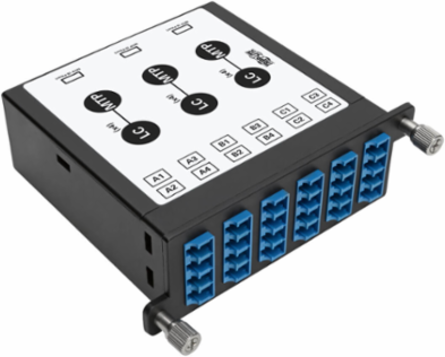

Singlemode fiber cassette installs in Tripp Lite N484-Series chassis to connect 12 duplex LC fiber cables with three 8-fiber MTP/MPO (APC) connections in high-density network applications.
Features

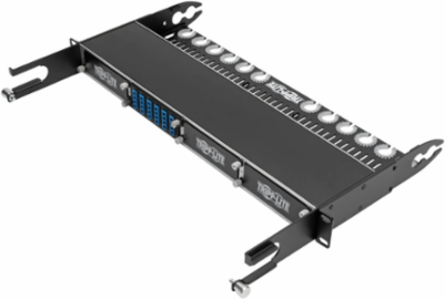

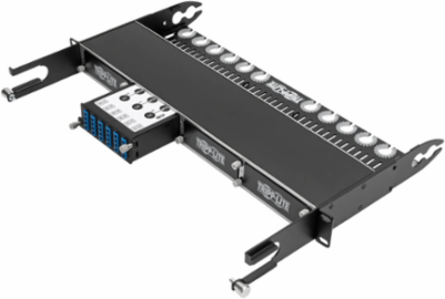

- For use with Tripp Lite N484-01U or N484-00U chassis
- Simple installation with no tools required
- Factory-terminated singlemode connectors reduce installation time
- Supports 40/100 GbE internally using singlemode fiber optic cable
- Optimized for parallel optics and Base-8 connectivity
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- Elegant, Simple Solution for 40/100 Gb to 10/25 Gb LC Cable Connections
- Designed Specifically for Use with Tripp Lite Cabling
- Simple Fiber Installations Save Time and Money
- Easy to Modify, Upgrade or Expand Fiber Infrastructure By Adding or Swapping Cassettes
- Premium Construction for Optimal Performance
Specifications
Additional
- Ports
- 12
- Connector Type Side B

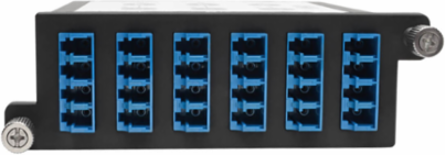

- LC Duplex (Female)
- Fiber Type
- Singlemode 8.3/125
- Network Speeds Supported
- 10 Gb, 25 Gb, 40 Gb, 100 Gb
- Compliance
- IEEE 802.3ae, ANSI T11.2
- Warranty
- Lifetime limited warranty

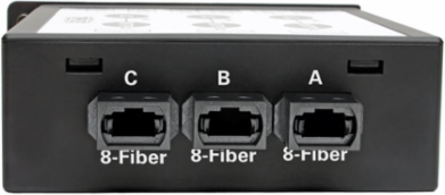

Connector Type Side A8-Strand MTP (Male)
TechnologyMTP/MPO; SFP+/QSFP+/QSFP28; Singlemode
Insertion Loss0.35 dB max
PolarityPolarity B
MaterialDurable plastic
