Tripp Lite PDU3EVN10L2130B 10kW 3-Phase Monitored PDU, LX Interface, 208/240V Outlets (42 C13/6 C19), LCD, NEMA L21-30P, 3m/10 ft. Cord, 0U 1.8m/70 in. Height, TAA
Tripp Lite PDU3EVN10L2130B 10kW 3-Phase Monitored PDU, LX Interface, 208/240V Outlets (42 C13/6 C19), LCD, NEMA L21-30P, 3m/10 ft. Cord, 0U 1.8m/70 in. Height, TAA
- MPN: PDU3EVN10L2130B
- UPC: 037332209429
- PPN: TRP-PDU3EVN10L2130B
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2601.52/ EA
Description
10kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT environment. Built-in Java-free network interface remotely monitors load levels to prevent overloads that cause downtime.
Features

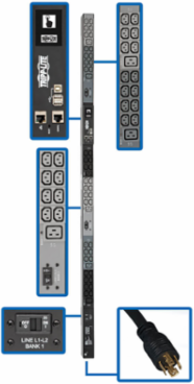

- 10kW 208/240V 3-phase 0U monitored PDU
- 48 outlets—42 C13, 6 C19—with plug-lock inserts
- Built-in LX Platform interface for remote access 24/7
- NEMA L21-30P input with 10 ft. AC power cord

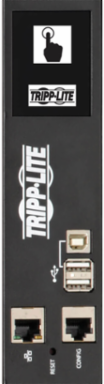

- Touchscreen LCD with mobile access option via QR code
- 2-year limited warranty
- Distributes and Monitors Network-Grade AC Power
- 48 Outlets Distribute AC Power
- Color Touchscreen LCD
- Built-In HTML5-Based LX Platform Interface
- Broad Communications Compatibility
- Easy 0U Installation in EIA-Standard 19 in. Racks
- TAA-Compliant
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA) CAN/CSA 60950-1 (Canada), NOM (Mexico), FCC Class A Part 15 (Emissions), ROHS, TAA Compliant
Physical
- Form Factors Supported

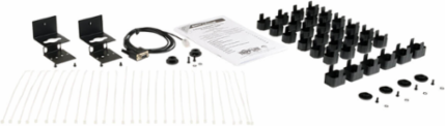

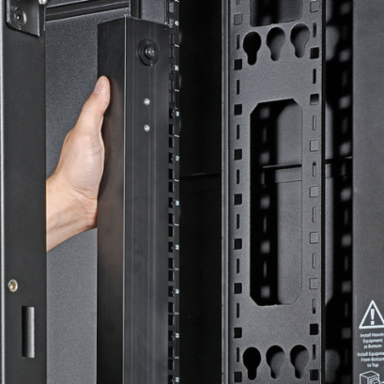

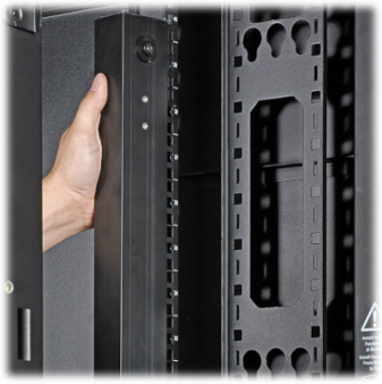

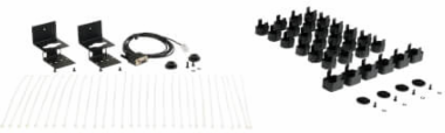

- Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 22.76
- Unit Weight (lbs.)
- 15.69
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)6.89 x 9.65 x 75.87
Unit Dimensions (hwd / in.)70 x 2.17 x 2.86
User Interface, Alerts & Controls
- Reported Load Segments
- Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (13.9A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)
- Current Measurement Accuracy (Amps)
- +/-1%
- Power Measurement Accuracy (Watts)
- +/-1%

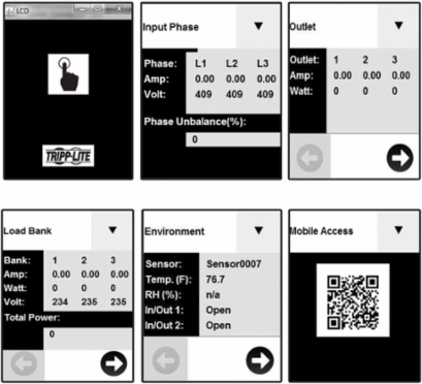

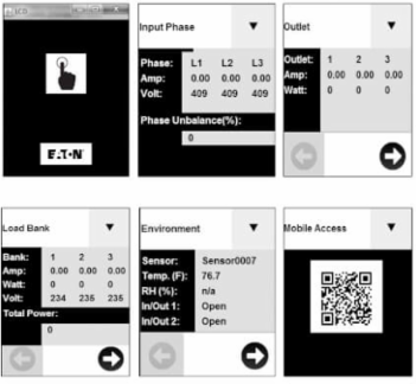

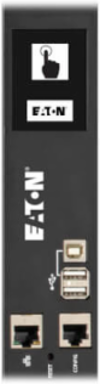

Front Panel LCD DisplayTouchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)
Voltage Measurement Accuracy (Volts)+/-1%
Input
- PDU Input Voltage
- 208; 240
- Maximum Input Amps
- 24
- Input Phase
- 3-Phase
Recommended Electrical Service30A 208/240V with L21-30R outlet

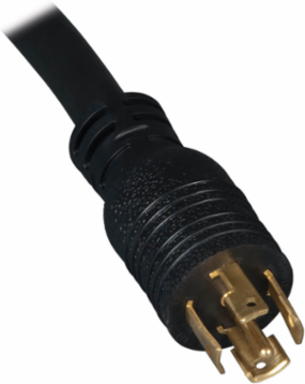

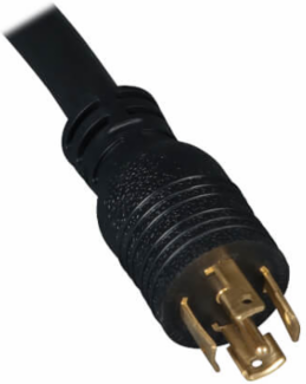

PDU Plug TypeNEMA L21-30P
Input Cord Length (ft.)10
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (42) C13; (6) C19
- Overload Protection
- 3 20A circuit breakers, one per output load bank
Output Capacity Details10kW (240V), 8.6kW (208V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet
Output Nominal Voltage208; 240
Communications
- SNMP Compatibility
- Pre-installed LX platform network interface
Environmental
- Operating Temperature Range
- 32 to 122F (0C to 50C)
- Relative Humidity
- 5-95% non-condensing
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Overview
- UPC Code
- 037332209429
PDU TypeMonitored
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
