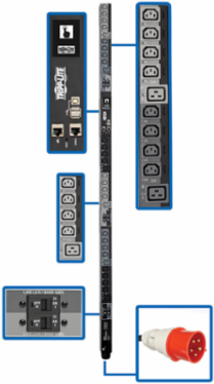

Tripp Lite PDU3XEVSR6G32B 22.2kW 3-Phase Switched PDU, 30 Outlets (24 C13/6 C19), Touchscreen LCD
- MPN: PDU3XEVSR6G32B
- UPC: 037332195456
- PPN: TRP-PDU3XEVSR6G32B
CAD
$4164.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
22.2kW 3-phase PDU with multi-function touchscreen LCD distributes, monitors and manages AC power. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Features
- 22.2kW 220/230V 3-phase switched 1.8m 0U PDU
- 30 individually controllable outlets—24 C13, 6 C19
- Built-in LX Platform interface for remote access 24/7

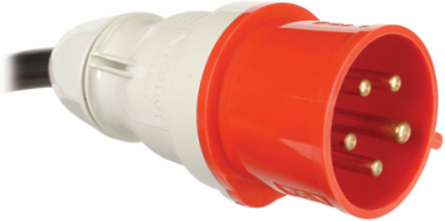

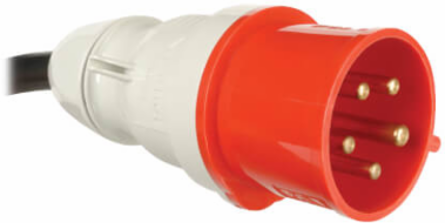

- IEC 309 32A Red 380/400V PDU input with 1.8m AC power cord

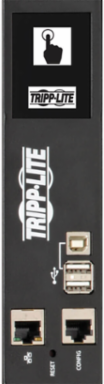

- Touchscreen LCD with mobile access option via QR code
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes, Monitors and Manages Network-Grade AC Power
- 30 Switched 220/230V Outlets Distribute AC Power

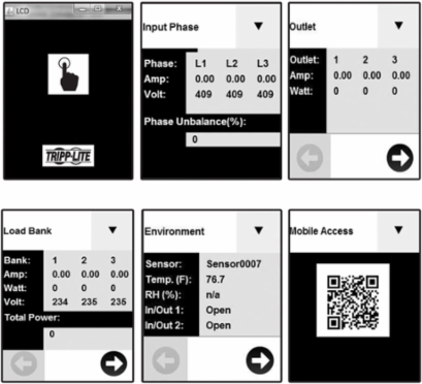

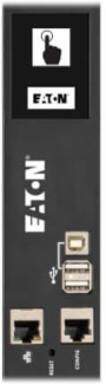

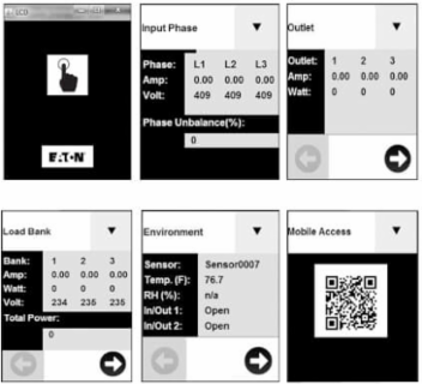

- Color Touchscreen LCD
- Built-In LX Platform Interface
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Broad Communications Compatibility
- Essential Safety Features

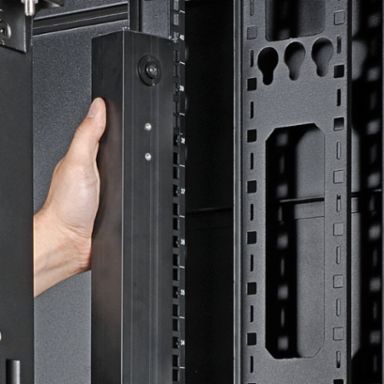

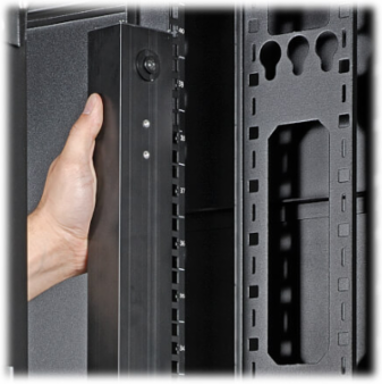

- Easy 0U Installation in EIA-Standard 19 in. Racks
- TAA-Compliant
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 22.2 kW
- Input Voltage
- 380-400V
- Phase
- 3-Phase
- Overload Protection

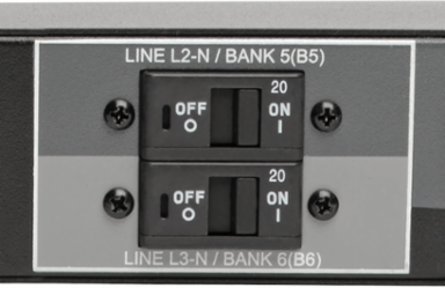

- 6 x 20A breakers protect 4 C13 and 1 C19 outlets each
- Current Measurement Accuracy
- +/-1%
- Input Phase
- 3-Phase
- Network Speed
- 10/100 Mbps, 1 Gbps
- Width
- 2.17 in
- Input Cord Length
- 6 ft (1.8 m)
- PDU Plug Type
- IEC-309 32A Red (3P+N+E)
- Material
- Metal
- Storage Temperature Range
- -30 to 140 °F (-22 to 60 °C)
- Operating Elevation
- 0 to 10,000 ft (0 to 3000 m)
- Certifications
- CE (EN 60950-1), CE Class A (Emissions), RoHS compliant, TAA Compliant
Output Voltage220-230V
Input Current32A
Output Capacity23 kW (415/240V), 22.2 kW (400/230V), 21.1 kW (380/220V) total capacity; 32A max per output phase; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Voltage Measurement Accuracy+/-1%
Power Measurement Accuracy+/-1%
Frequency Compatibility50 / 60 Hz
Length70 in
Height2.52 in
Weight16 lbs (7.26 kg)
Form Factor0U Vertical Rackmount
Operating Temperature Range32 to 122 °F (0 to 50 °C)
Relative Humidity5% to 95% non-condensing
ComplianceTAA, CE, RoHS
Warranty2-year limited warranty
