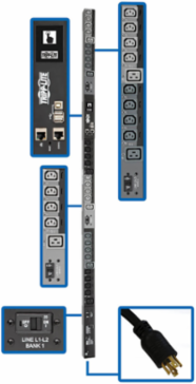

Tripp Lite PDU3EVSR6L2130 10kW 3-Phase Switched PDU, 30 Outlets, NEMA L21-30P, Touchscreen LCD
- MPN: PDU3EVSR6L2130
- UPC: 037332195395
- PPN: TRP-PDU3EVSR6L2130
CAD
$3516.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
10kW 3-phase PDU with multi-function touchscreen LCD distributes, monitors and manages AC power in an IT or industrial environment. Built-in network interface monitors load levels to prevent overloads that cause downtime.
Features
- 10kW 208/240V 3-phase switched 0U PDU
- 30 individually controllable outlets—24 C13, 6 C19
- Built-in LX Platform interface for remote access

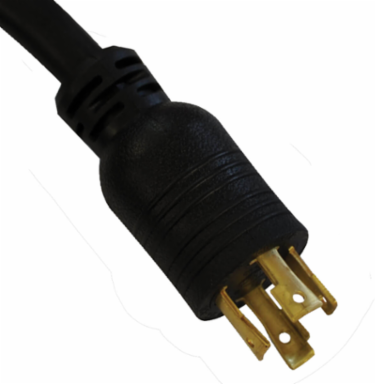

- NEMA L21-30P input with 6 ft. AC power cord

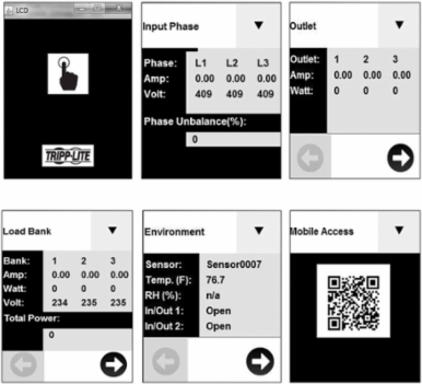

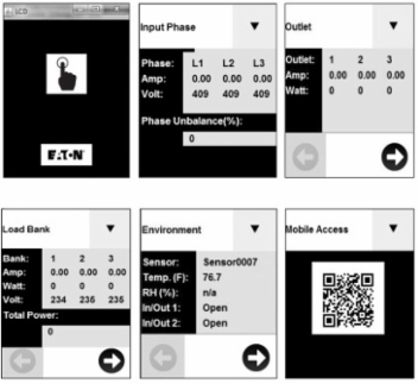

- Touchscreen LCD with mobile access option via QR code
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes, Monitors and Manages Network-Grade AC Power
- 30 Switched Outlets Distribute AC Power
- Color Touchscreen LCD

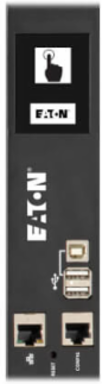

- Built-In LX Platform Interface
- Broad Communications Compatibility
- Reduce Service Calls with Auto Probe Autonomous Device Management

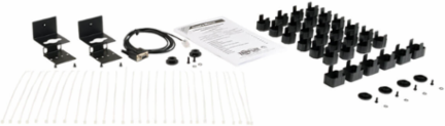

- Easy 0U Installation in EIA-Standard 19 in. Racks
- TAA-Compliant
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 10kW
- Input Phase
- 3-Phase
- Output Capacity

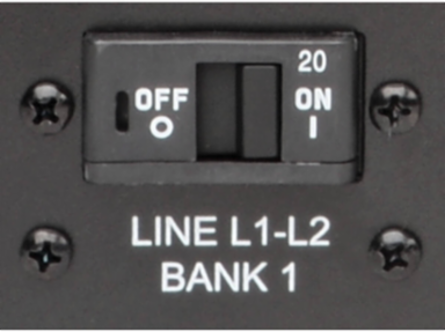

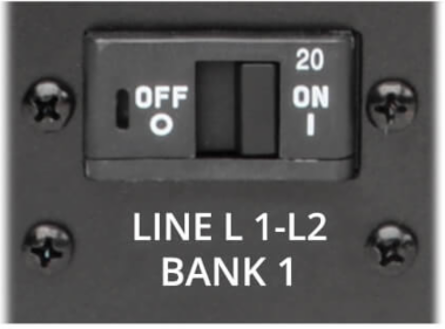

- 10kW (240V), 8.6kW (208V) total; 13.9A max per breakered load bank; 12A max per C13 outlet
- Voltage Measurement Accuracy
- +/-1%
- Power Measurement Accuracy
- +/-1%
- Individual Outlet Control
- Yes
- Input Plug Type
- NEMA L21-30P
- Material
- Metal
- Weight
- 16.55 lbs (7.51 kg)
- Operating Temperature Range
- 32 to 122°F (0 to 50°C)
- Relative Humidity
- 5 to 95% non-condensing
- Compliance
- TAA, RoHS, UL60950-1, CAN/CSA-C22.2, NOM
- Network Interface
- Built-in LX Platform, 10/100 Mbps auto-sensing Ethernet
Input Voltage208/240 V
Maximum Input Amps24 A
Frequency Compatibility50/60 Hz
Current Measurement Accuracy+/-1%
Output Outlets30 total (24 C13, 6 C19)
PDU Form FactorVertical (0U)
Input Cord Length6 ft
MountingVertical 0U, toolless or rack brackets
Dimensions (HxWxD)70 x 2.17 x 2.86 in (177.8 x 5.5 x 7.3 cm)
Storage Temperature Range-30 to 140°F (-22 to 60°C)
Operating Elevation0 to 10,000 ft
SNMP CompatibilitySNMP V1, V2c, V3
Communications ProtocolsHTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
