Tripp Lite PDU3XEVSRHWB 28.8kW 3-Phase Switched PDU, LX Platform Interface, 220/230/240V Outlets (24 C13/6 C19), LCD, Hardwire 380/400/415V Input, 0U, TAA

MPN: PDU3XEVSRHWB
UPC: 037332195418
PPN: TRP-PDU3XEVSRHWB

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3614.23/ EA

Qty:

Loading add to cart quantity...

Description

28.8kW 3-phase PDU with multi-function touchscreen LCD distributes, monitors and manages AC power. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

28.8kW 220/230/240V 3-phase switched 1.8m 0U PDU

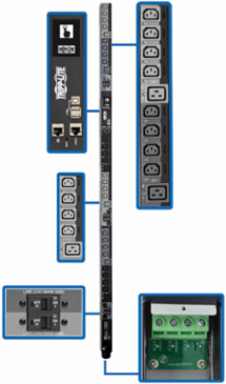

30 individually controllable outlets—24 C13, 6 C19
Built-in LX Platform interface for remote access 24/7

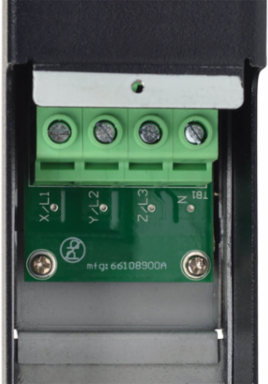

Hardwire 380/400/415V input
Touchscreen LCD with mobile access option via QR code
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year limited warranty
Distributes, Monitors and Manages Network-Grade AC Power
30 Switched 220/230/240V Outlets Distribute AC Power
Color Touchscreen LCD
Built-In LX Platform Interface
Broad Communications Compatibility
Reduce Service Calls with Auto Probe Autonomous Device Management
Essential Safety Features
Easy 0U Installation in EIA-Standard 19 in. Racks
TAA-Compliant

Specifications

Certifications

Certifications: Tested to UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011 (Canada), NOM (Mexico), Tested to CE (EN 60950-1), FCC/CE Class A (Emissions), RoHS compliant, TAA Compliant

Physical

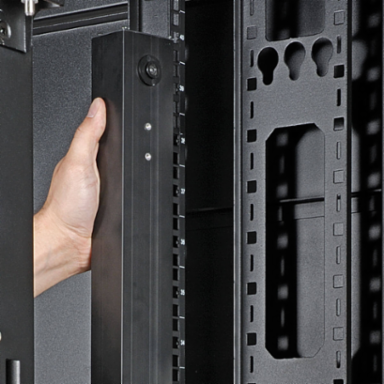

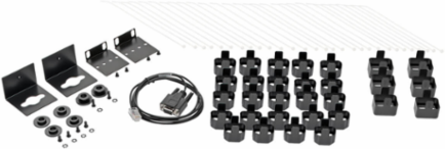

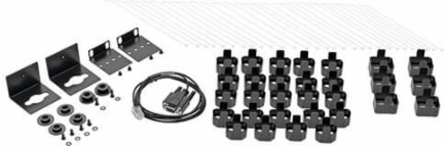

Form Factors Supported: Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

PDU Form Factor: Vertical (0U)

Shipping Weight (lbs.): 18.20

Unit Weight (lbs.): 13.5

Material of ConstructionMetal

Shipping Dimensions (hwd / in.)5.50 x 6.90 x 76.00

Unit Dimensions (hwd / in.)70 x 2.17 x 2.52

User Interface, Alerts & Controls

Reported Load Segments: Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1, B4); L2-N feeds dark-gray outlets (B2, B5); L3-N feeds light-gray outlets (B3, B6)

Front Panel LEDs: One LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip), LED OFF (Power OFF). Network Activity (Green): Flashes for network activity. Link/Network Speed (Yellow): On steady for any speed.

Current Measurement Accuracy (Amps): +/-1%

Power Measurement Accuracy (Watts): +/-1%

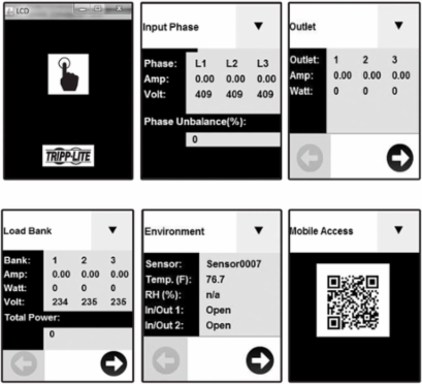

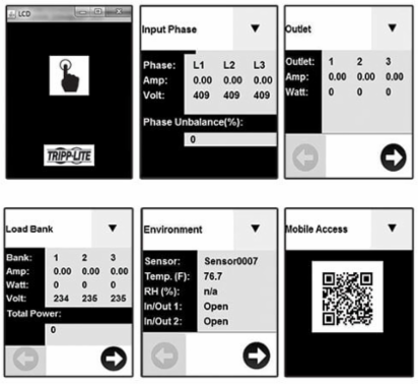

Front Panel LCD DisplayTouchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), OUTLET DATA (Amperage, Wattage per outlet), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)

SwitchesLX Platform Interface: Recessed reset switch for interface reboot and factory reset

Voltage Measurement Accuracy (Volts)+/-1%

Input

PDU Input Voltage: 380; 400

Maximum Input Amps: 40

Input Phase: 3-Phase

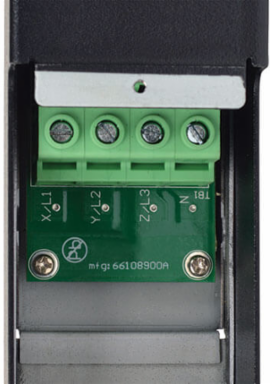

Recommended Electrical ServiceExternal circuit breaker - 3 pole, 415V rated, 50A; Wiring - 5C, #8AWG (10mm2), 75C rated minimum; Conduit - 3/4 in. (19mm) minimum, flexible

PDU Plug TypeHardwire

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (24) C13; (6) C19

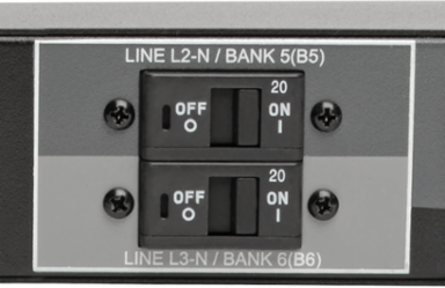

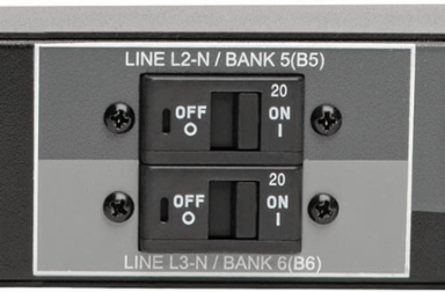

Overload Protection: 6 20A breakers protect 4 C13 and 1 C19 outlet each

Output Capacity Details28.8kW (415/240V), 27.7kW (400/230V), 26.3kW (380/220V) total capacity; 40A max per output phase (L1, L2, L3); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

Output Nominal Voltage220 (380V input); 230 (400V input); 240 (415V input)

Communications

PowerAlert Software: LX Platform Interface: PowerAlert Device Manager15 (PADM15)

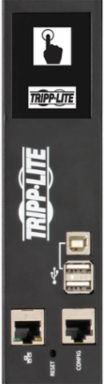

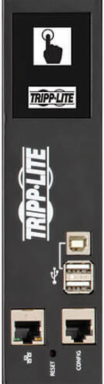

Network Monitoring Port: RJ45 Network port, RJ45 Config/Console Access port; 2x USB A ports supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. USB B port (Configuration & Console Access)
