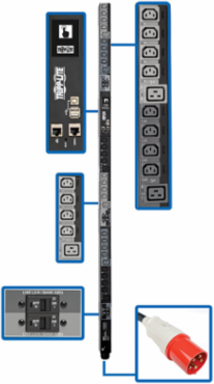

Tripp Lite PDU3XEVSR6G63B 27.7kW 3-Phase Switched PDU, 30 Outlets C13/C19, Touchscreen LCD, 0U
- MPN: PDU3XEVSR6G63B
- UPC: 037332195432
- PPN: TRP-PDU3XEVSR6G63B
CAD
$3466.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
27.7kW 3-phase PDU with multi-function touchscreen LCD distributes, monitors and manages AC power. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Features
- 27.7kW 220/230V 3-phase switched 1.8m 0U PDU
- 30 individually controllable outlets—24 C13, 6 C19
- Built-in LX Platform interface for remote access 24/7

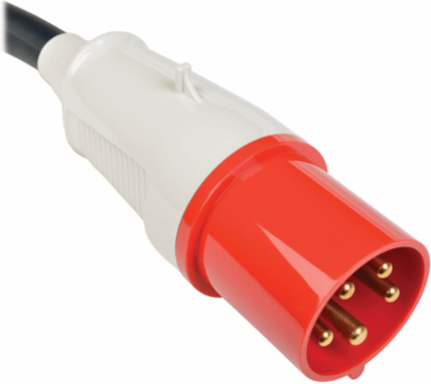

- IEC 309 63A Red 380/400V PDU input with 1.8m AC power cord

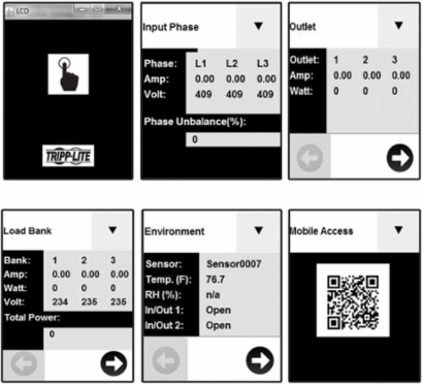

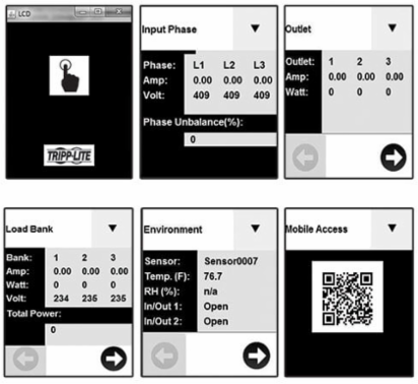

- Touchscreen LCD with mobile access option via QR code
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes, Monitors and Manages Network-Grade AC Power
- 30 Switched 220/230V Outlets Distribute AC Power
- Color Touchscreen LCD
- Built-In LX Platform Interface
- Broad Communications Compatibility
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Essential Safety Features

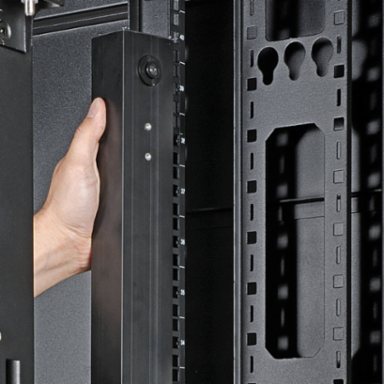

- Easy 0U Installation in EIA-Standard 19 in. Racks
- TAA-Compliant
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 27.7 kW (400/230V input)
- Input Voltage
- 380/400 V
- Recommended Electrical Service
- 63A 380/220V, 400/230V with IEC 309 63A Red (3P+N+E) plug
- Input Amperage
- 63 A
- Number of Outlets
- 30 (24 C13, 6 C19)
- Output Current Max per Phase
- 40 A
- Output Current Max per C19 Outlet
- 16 A
- Input Cord Length
- 1.8 m (6 ft)
- Dimensions (H x W x D)
- 70 x 2.17 x 2.52 in (177.8 x 5.51 x 6.4 cm)
- Material
- Metal
- Storage Temperature Range
- -30 to 60 °C (-22 to 140 °F)
- Communication Interface

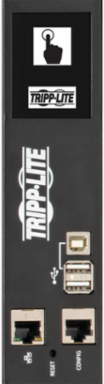

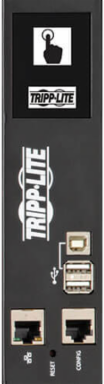

- Built-in LX Platform, USB, RJ45 Network Port, RS-232
- Certifications
- CE (EN 60950-1), CE Class A Emissions, RoHS Compliant, TAA Compliant
- Voltage Measurement Accuracy
- ±1% (Volts)
- SNMP Compatibility
- SNMP V1, V2c, V3
- Warranty
- 2-year limited warranty
Output Capacity28.8 kW (415/240V), 27.7 kW (400/230V), 26.3 kW (380/220V) total capacity
Output Voltage220/230 V
Maximum Input Amps40 A
Phase3-Phase

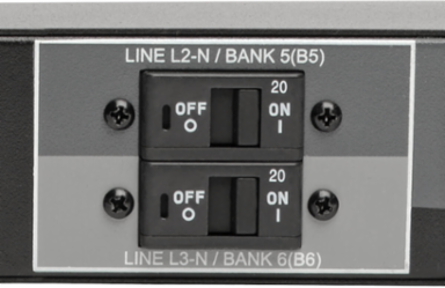

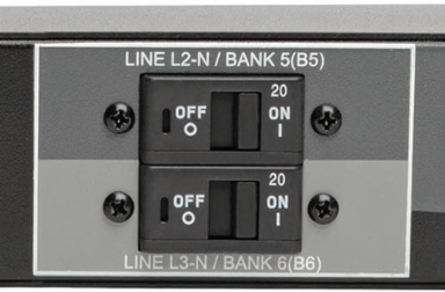

Overload Protection6 breakers at 20 A each protecting groups of outlets
Output Current Max per Breakered Outlet Bank20 A
Output Current Max per C13 Outlet12 A

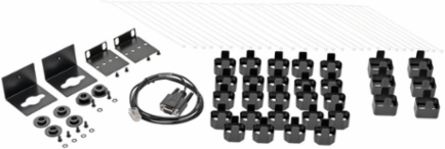

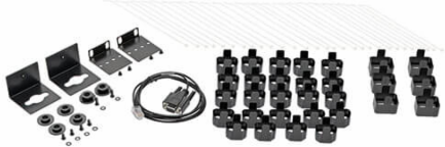

PDU Form FactorVertical (0U), rackmount with included brackets, supports toolless button-mount racks
Weight17.7 lbs (8.03 kg)
Operating Temperature Range0 to 50 °C (32 to 122 °F)
Relative Humidity5% to 95% non-condensing
Network Speed10/100 Mbps, 1 Gbps
Power Measurement Accuracy±1% (Watts)
Current Measurement Accuracy±1% (Amps)
Operating EnvironmentIncludes sensor modules for temperature and humidity monitoring; mobile access via QR code
