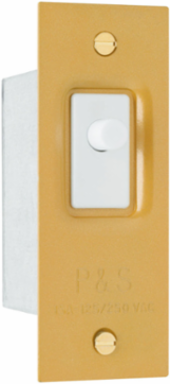

Pass & Seymour 1200 Pressure Sensitive Canopy Switch, 15 Amp 120V, Dimensions 1.516 x 4.031 x 1.344 Inch
- MPN: 1200
- UPC: 785007120004
- PPN: P-S-1200
CAD
$29.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensitive Canopy Switch, 15 Amp 120V, Dimensions 1.516 x 4.031 x 1.344 Inch
Features
- Equipped with wire leads.
- 1200 and 1201 complete with metal box and plate.
- Only 14 oz. pressure actuates switch.
- Back box cold rolled steel.
- Plate is steel with a bronze coating.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.344 in |
|---|---|
| Height | 4.031 in |
| Color | White |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Voltage | 120 VAC |
| Load Type | Halogen |
| Switch Type | Canopy |
| Load Type | Universal |
| Load Type | Fluorescent |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Throw Type | Single Throw |
| Requires Neutral Wire | Yes |
| Number of Poles | Single Pole |
| Connection Location | Side Only |
| Load Rating | 15 A @ 120/250 VAC |
| Wire Connection Type | Wire Terminal |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Load Type | CFL |
| Amperage | 15.0 A |
| Special Features | Light ON, door OPEN. Equipped with wire leads. Complete with metal box and plate. Only 14 oz. pressure actuates switch. Back box cold rolled steel. Plate is steel with bronze coating. |
|---|---|
| Width | 1.516 in |
| Finish | Matte |
| Material | Thermoplastic |
| Type | Switch |
| Voltage | 250 VAC |
| Number of Gangs | 1 |
| Standard | UL Listed |
| Indoor/Outdoor | Indoor |
| Type | Tamper-Resistant |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Operating Cycles | 30000.0 |
| Contact Configuration | N-O |
| Application Sector | Commercial |
| Application Sector | Hospitality |
| Features | Pressure Sensitive Switch |
| Warranty Type | 1-Year Limited Warranty |
| Environmental Conditions | Flammability: UL94 V2 |
| Load Type | LED |
| Load Type | Xenon |
