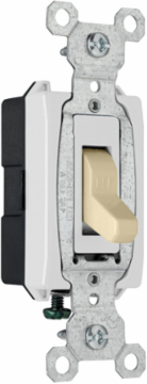

Pass & Seymour CS15AC1I Commercial Specification Grade 1-Pole Switch, 15A 120/277V, Ivory
- MPN: CS15AC1I
- UPC: 785007126419
- PPN: P-S-CS15AC1I
CAD
$7.84
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Commercial Specification Grade 1-Pole Switch, 15A 120/277V, Ivory
Features
- One-piece brass alloy contact arm for reliable electrical performance.
- One-piece steel strap with integral ground is plated for corrosion resistance.
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
- Heavy-duty toggle bumpers for smooth and quiet operation.
- Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
- Oversized silver alloy contacts for longer dependable switch life.
- Tri-drive terminal and mounting screws.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.073 in |
|---|---|
| Color | Ivory |
| Width | 1.32 in |
| Country of Origin | Mexico |
| Type | Switch |
| Load Type | LED |
| Load Type | Xenon |
| Voltage | 277 VAC |
| Load Type | Halogen |
| Standard | UL 498/20 |
| Load Type | Universal |
| Load Type | Fluorescent |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Requires Neutral Wire | No |
| Application Sector | Commercial |
| Connection Location | Side Only |
| Horsepower Rating | 2 HP @ 240 VAC |
| Wire Connection Type | Screw Terminals |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Special Features | Side wire, locking support, heavy duty toggle |
| Height | 3.281 in |
|---|---|
| Finish | Matte |
| Material | Thermoplastic |
| Product Line | Pass & Seymour |
| Load Type | CFL |
| Amperage | 15.0 A |
| Voltage | 120 VAC |
| Standard | FEDSPEC |
| Number of Gangs | 1 |
| Switch Type | Toggle |
| Indoor/Outdoor | Indoor |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Throw Type | Single Throw |
| Number of Poles | Single Pole |
| Application Sector | Industrial |
| Load Rating | 15 A @ 120/277 VAC |
| Horsepower Rating | 1/2 HP @ 120 VAC |
| Warranty Type | 1-Year Limited Warranty |
| Features | Single Piece Plated Steel Mounting Strap |
