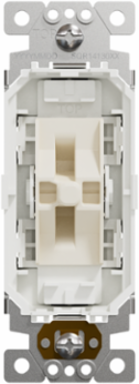

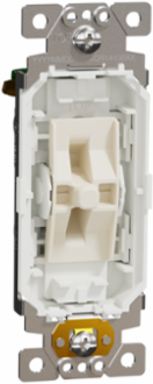

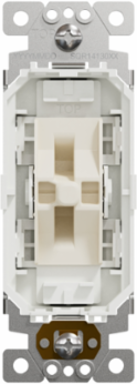

Square D SQR14130XX X Series 15A 3-Way Switch Module, 120V/277V, 1 Gang, Flush Mount
Square D SQR14130XX X Series 15A 3-Way Switch Module, 120V/277V, 1 Gang, Flush Mount
- MPN: SQR14130XX
- UPC: 785901534600
- PPN: SCH-SQR14130XX
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$4.83/ EA
Description

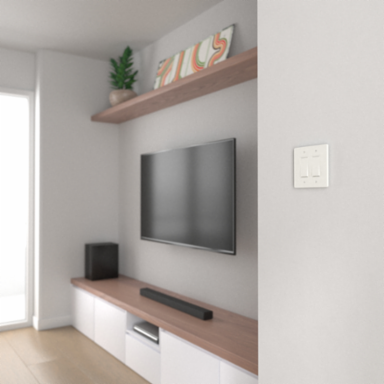

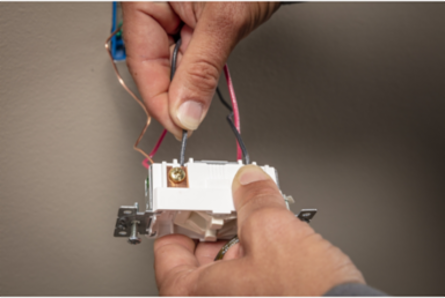

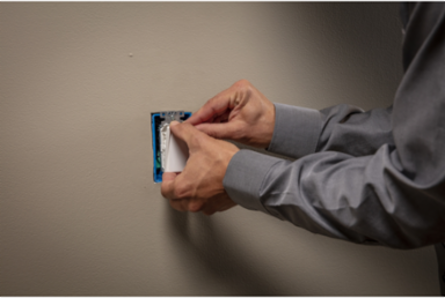

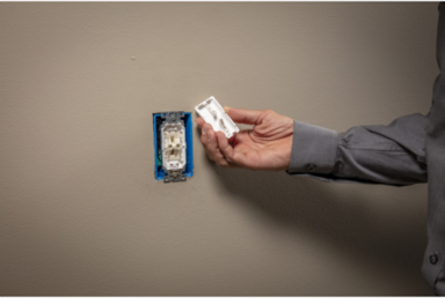

X Series residential wiring devices 3-way switch offers an array of new features, such as flush mounting, easy installation, and connectivity. The rated operational voltage of this switch is 120V and 277V. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 10 pieces, the connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate and the cover plates of the XD series, so that the personalization of your interior design with many styles of décor is possible. This switch has a width of 37 mm, a height of 103 mm and a depth of 35 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. By satisfying the UL 20 standard, this switch is cUlus certified.
Specifications
- Amperage
- 15 A
- Switch Function
- 3-way
- Number of Gangs
- 1 gang
- Number of Poles
- 1
- Device Mounting
- flush
- Material
- plastic strap, metal fixing frame

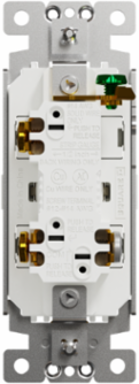

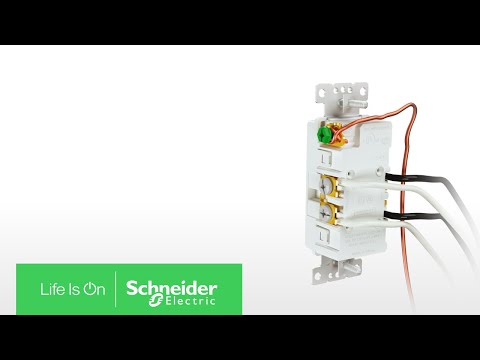

- Connections - Terminals

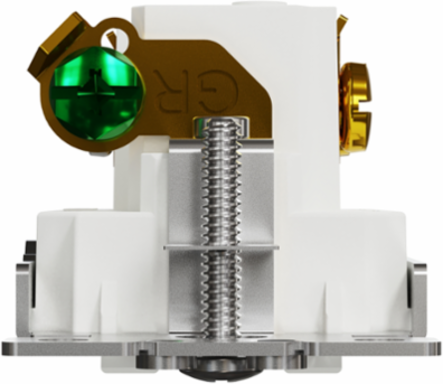

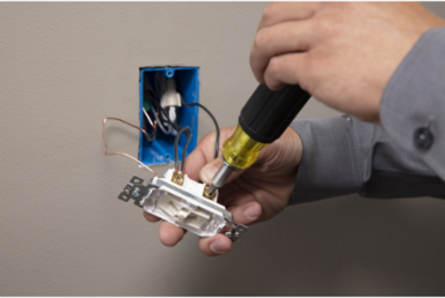

- phase and neutral 2 screw terminals AWG 14...AWG 12 copper, phase and neutral 2 push-in terminations AWG 14 solid copper, earth 1 screw terminal copper
- Product Certifications
- UL 20, cULus
- Range
- Square D X Series
- Product Or Component Type
- switch
- Network Type
- AC
- Environmental Disclosure
- ENVPEP2011019EN
- Eu Rohs Directive
- Compliant
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free
- Yes
- Warranty
- 2 years
- Targeted Channel
- distributor
Voltage120 V, 277 V
Network Frequency60 Hz
Device Applicationcontrol
Number of Modules1
Mounting Modeby screws
Surface Finishmatt
Earth Circuitself earthing
StandardsUL 20
Market Segmentresidential
Device Presentationmechanism with fixing frame
Sustainable Offer StatusGreen Premium product
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Of SvhcYes
Mercury FreeYes
Rohs Exemption InformationYes
Aesthetic NameX Series
