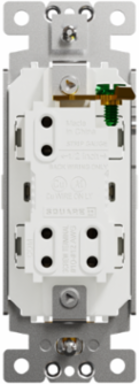

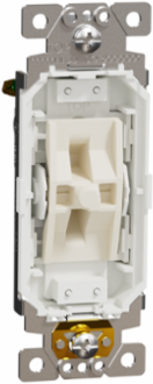

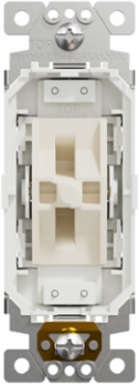

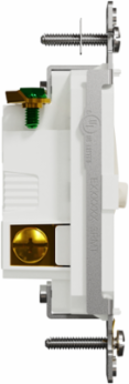

Schneider Electric SQR14231XX X Series 20A 3-Way Switch Module with Back Wire Clamps
- MPN: SQR14231XX
- UPC: 785901534662
- PPN: SCH-SQR14231XX
- UNSPSC: 39122226
CAD
$14.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric SQR14231XX X Series 20A 3-Way Switch Module is thoughtfully engineered to enhance your electrical installations with reliability and ease of use. Featuring back wire clamps, this module simplifies connections and ensures secure wiring, making it an excellent choice for both professional electricians and DIY enthusiasts. With a robust 20A capacity, it is designed to handle various electrical loads while providing consistent performance in a 3-way configuration, allowing for convenient control of lights from multiple locations. This switch module exemplifies Schneider Electric's commitment to quality and functionality, making it a dependable component for your electrical needs.
Features
- Engineered with an innovative modular structure, this Square D X Series switch body allows the decorative rocker plate cover (sold separately) to be snapped on or swapped out at any time. This lets contractors leave the bare, fully functional switch base installed during the rough-in phase to keep projects moving forward while giving end-users total freedom to change their interior color scheme post-construction without touching live electrical wires.
- Boasting a professional-grade 20-amp, 120/277V AC rating, this module is purpose-built to handle demanding commercial lighting systems, including fluorescent ballasts and high-efficiency LED arrays. The integrated silver alloy contacts provide long-lasting, low-resistance connection paths, ensuring years of trouble-free operation while preventing terminal degradation under heavy-inrush currents.
- Featuring a dedicated 3-way contact configuration, this switch enables smooth control of a single lighting zone from two separate structural locations. This makes it an ideal addition for multi-entrance hallways, open commercial workspaces, stairwells, and expansive residential garages, offering optimized utility and enhanced workplace safety.

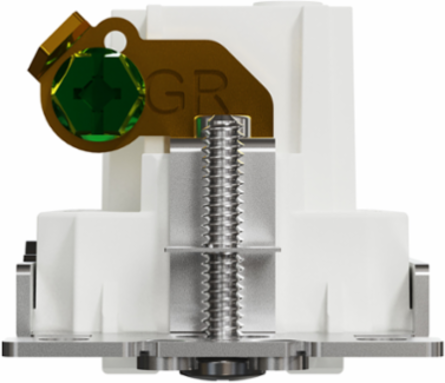

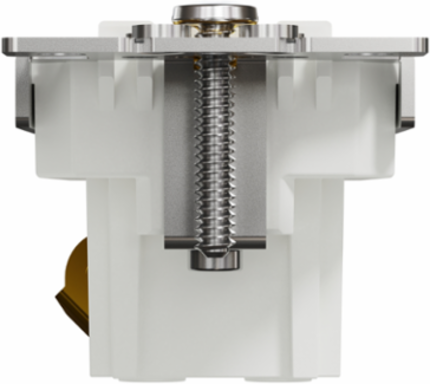

- Equipped with built-in back-wire clamps that comfortably accommodate solid or stranded 12 AWG to 10 AWG copper conductors, this switch removes the need to manually loop wires around side screws. Electrical installers can simply strip the wire, insert it straight into the back-clamp channel, and torque down the screw to achieve a vibration-resistant, highly reliable mechanical bond.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Weight | 0.081 g |
| Actuator | dolly |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 120 V, 277 V |
|---|
| Ie Rated Operational Current Ac | 20 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.0000208838562896957, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.00000262318987581761, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 4 kg CO2 eq., 3.6391999999999998 |
| Local Publishable Date | 2026-08-19 |
| Pre Comm Date | 2020-12-18 |
| Weee Applicability | Finished product |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Earth Circuit | self earthing |
| Market Segment | commercial |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Modules | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Square D X Series |
| Software Version | EIME v5.9.1 |
| Sustainable Packaging | Yes |
| Targeted Channel | distributor |
| Connections Terminals | phase and neutral 2 screw terminal 12 AWG...10 AWG) copperearth 1 screw terminal copper |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 24 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 54 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.00001795683003128259 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0 kg CO2 eq., 0.0010464195658356245 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Weee Scope | Out |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | dolly |
| Device Application | control |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Number Of Poles | 1 |
| Product Or Component Type | switch |
| Returnability | Yes |
| Surface Finish | Matte |
| Switch Function | 3-way |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Database Version | 2016-11 |
| Certificate Agency | cULus |
| Customs Code | 8536509065 |
| Functional Unit Description | 3-way switch module, residential, supports single pole, three-way, and four-way switches. |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 2.628 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2011019_V1 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2026-05-26 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0038822260337472757 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2011019_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | switch |
|---|
ETIM
| ETIM 8 | EC001590 |
|---|---|
| ETIM 10 | EC001590 |
| ETIM 9 | EC001590 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
