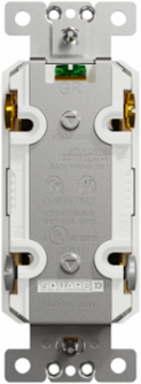

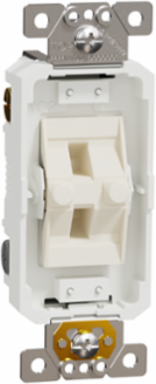

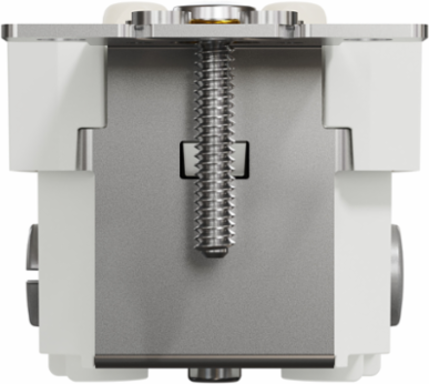

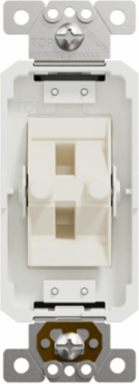

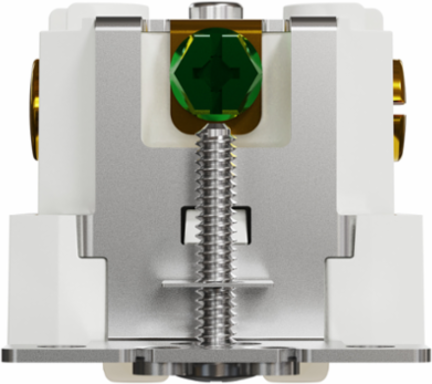

Schneider Electric SQR14141XX X Series 15A 4-Way Switch Module 120V/277V, Flush Mounting, Matt Finish

MPN: SQR14141XX
UPC: 785901534631
PPN: SCH-SQR14141XX
UNSPSC: 39122226

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$25.67

Available to Order from Manufacturer

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

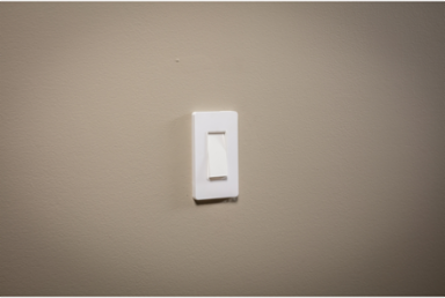

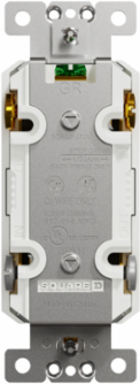

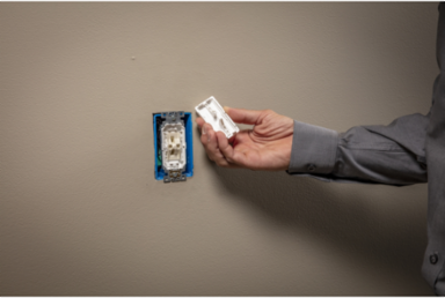

The Square D X Series 15A 4-way Switch Module features a unique patented 4-way switch module design that allows you to easily swap-out the color rocker plate or X series cover plate. The rated operational voltage of this switch is 120V and 277V. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 10 pieces, the connection are screw terminal. These plates easily snap into place for a modern, flush-facing finish to your walls without removing the switch and rewiring. This device is compatible with the rocker plate, so that the personalization of your interior design with many styles of décor is possible. This switch has a width of 37 mm, a height of 103 mm and a depth of 37 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. By satisfying the UL 20 standard, this switch is cUlus certified. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 35mm. This product comes with 10 pieces per pack. This device is compliant with UL 20 standard and cULus certification.

Features

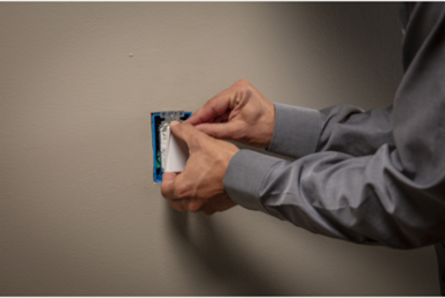

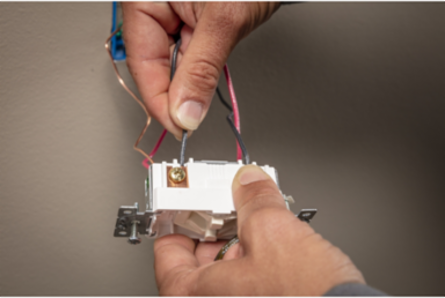

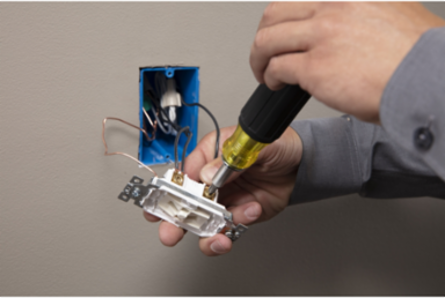

This Square D X Series device is engineered exclusively as a base module, allowing you to securely install and test your wiring during the messy construction phase without ruining the final finish. By purchasing the snap-on rocker cover separately, you can effortlessly update your interior design with different matte colors down the road-completely eliminating the need to expose live wires or hire an electrician for future aesthetic upgrades.

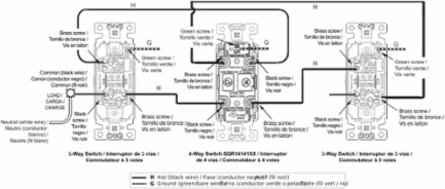

Built specifically as a 4-way switch, this module works seamlessly alongside two standard 3-way switches to grant full multi-location lighting control from three or more distinct locations. It effectively eliminates frustrating dark zones in sprawling floor plans, complex stairwells, and commercial spaces by giving you convenient control over a single lighting circuit from every available entrance.
Highly versatile and rigorously tested for 15-amp loads, this mechanism safely supports both standard 120V residential fixtures and high-voltage 277V commercial lighting systems. Its heavy-duty internal contacts provide crisp, highly responsive switching for everyday home circuits and demanding facility applications alike, preventing premature wear and dangerous electrical arcing.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Actuator	dolly

Complementary Attributes

Ue Rated Operational Voltage	120 V, 277 V

Ie Rated Operational Current Ac	15 A

Important Information Attributes

Persona Type Ids	EU, LC
Local Data Status	Publishable
Pre Comm Announcement Date	2020-10-30
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Aesthetic Name	X Series
Earth Circuit	self earthing
Material	plastic: strapmetal: fixing frame
Network Frequency	60 Hz
Number Of Gangs	1 gang
Number Of Poles	1
Product Or Component Type	switch
Returnability	No
Sustainable Packaging	Yes
Targeted Channel	distributor
Certificate Agency	cULus
Customs Code	8536509065

Persona Type Names	End User, Contractor
Local Publishable Date	2026-08-28
Pre Comm Date	2020-12-18
Weee Scope	In
Scope Perimeter	Outside of Europe
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2023
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Residential
Actuator	dolly
Device Application	control
Market Segment	commercial
Mounting Mode	by screws
Network Type	AC
Number Of Modules	1
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	Square D X Series
Surface Finish	Matte
Switch Function	4-way
Connections Terminals	phase and neutral 2 screw terminal 14 AWG...12 AWG) copperearth 1 screw terminal copper
Nbr. Of Units In Pkg.	1
Warranty In Months	24

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2011019EN
