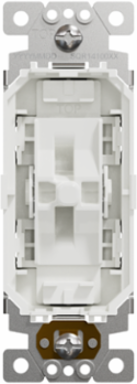

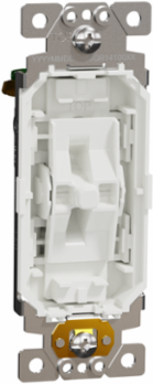

Schneider Electric SQR14100XX X Series 15A Single Pole Flush Mount Switch, 120V/277V
- MPN: SQR14100XX
- UPC: 785901534471
- PPN: SCH-SQR14100XX
CAD
$3.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

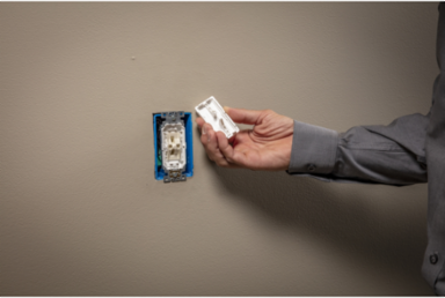

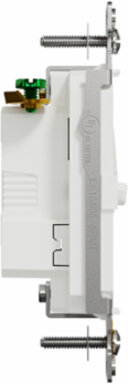

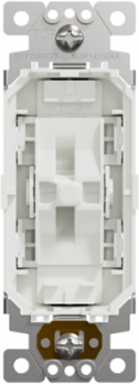

The Square D X Series 15A Single-Pole Switch Module with Side Wire Clamps allows you to swap out faceplates quickly and easily without removing the switch and rewiring. The rated operational voltage of this switch is 120V and 277V. Its unique patented switch module is designed to support the swap-out of color rocker plate cover plate (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Sold in 10 pieces, the connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate and the cover plates of the XD series, so that the personalization of your interior design with many styles of décor is possible. This switch has a width of 37 mm, a height of 103 mm and a depth of 35 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. By being mercury free and heavy metal free, this switch is cUlus certified. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 35mm. This product comes with 10 pieces per pack. This device is compliant with UL and cULus certification. Its mercury free and heavy metal free.
Features

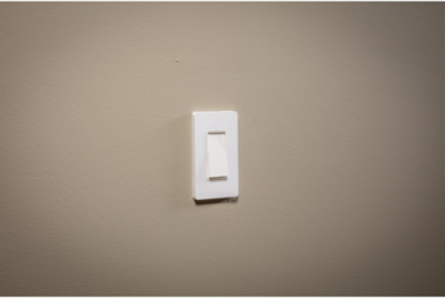

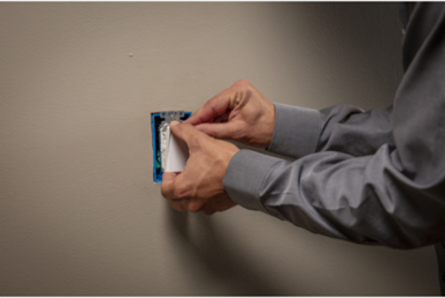

- Part of the Schneider X Series, this module is designed for effortless customization using snap-on rocker covers (sold separately) in various colors like white, light almond, and black. This modularity allows homeowners and designers to update the aesthetic of a room in seconds, eliminating the need to hire an electrician for a full device replacement when painting or remodeling.
- Rated for 15 Amps, this single-pole switch is optimized for controlling a wide range of residential loads, including LED, CFL, and incandescent bulbs, as well as high-speed ceiling fans. It provides a reliable, long-lasting mechanical life cycle, ensuring your home s primary lighting circuits operate safely and consistently for years to come.
- Constructed from durable, UV-stabilized polycarbonate, this switch is engineered to resist yellowing, cracking, and impact over time. The rugged build quality ensures long-term reliability in high-traffic areas like hallways and kitchens, providing a consistent, tactile "click" that signifies a high-quality mechanical connection and prevents premature wear.

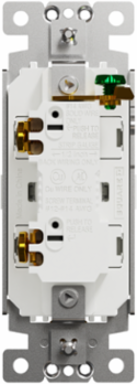

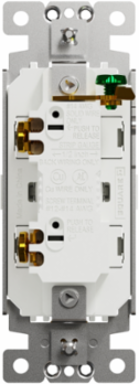

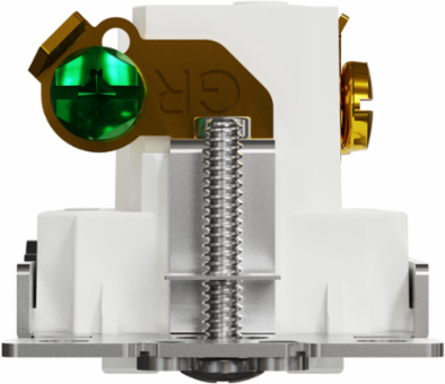

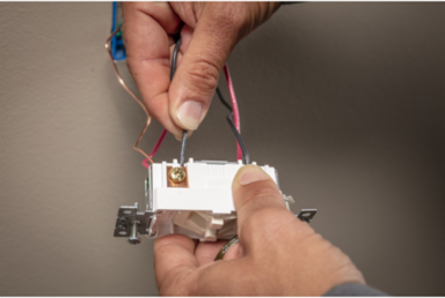

- Featuring both traditional side-wire terminals and "Speed Wire" push-in ports, this switch offers maximum flexibility for #12 or #14 AWG copper wiring. The ergonomic design reduces hand fatigue during large-scale installs and significantly speeds up the wiring process, while the integrated grounding screw ensures a safe, code-compliant connection in any standard residential or commercial wall box.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
Important Information Attributes
| [Ue] Rated Operational Voltage | 120 V, 277 V |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.00001495387240496729, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.00000187833349132619, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 4 kg CO2 eq., 3.6391999999999998 |
| Local Publishable Date | 2026-07-17 |
| Pre Comm Date | 2020-12-18 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Persona Type Ids | LC |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Earth Circuit | self earthing |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Modules | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Square D X Series |
| Software Version | EIME v5.9.1 |
| Sustainable Packaging | Yes |
| Targeted Channel | distributor |
| Pep Code | ENVPEP2011019_V1 |
| Pep Verification Date | 2026-05-26 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 54 |
| [Ie] Rated Operational Current Ac | 15 A |
| Package Weight(Lbs) | 58.0 g |
| Warranty (In Months) | 24 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 46.05 |
| Water Pollution (M3) Operational Energy Use [B6] | 179.41 |
| Connections - Terminals | phase and neutral 2 screw terminal 14 AWG...12 AWG) copper, phase and neutral 2 push-in termination 14 AWG), solid copperearth 1 screw terminal copper |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.00001285797705943691 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0 kg CO2 eq., 0.0007492880841785952 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | Out |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | Contractor |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | dolly |
| Device Application | control |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Number Of Poles | 1 |
| Product Or Component Type | switch |
| Returnability | Yes |
| Surface Finish | Matte |
| Switch Function | 1-way |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Database Version | 2016-11 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | 3-way switch module, residential, supports single pole, three-way, and four-way switches. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 2.628 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Certificate Agency | cULus |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 309.05 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 2.9423 |
| Customs Code | 8536509065 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2011019_V1 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2026-05-26 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0027798655550289133 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2011019_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | switch |
|---|
ETIM
| ETIM 8 | EC001590 |
|---|
| ETIM 9 | EC001590 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
