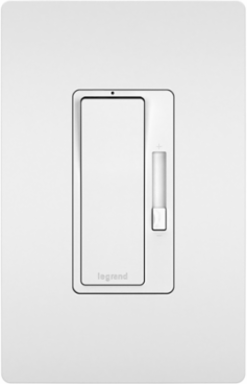

Radiant RH1103PTC radiant® 1100W Single-Pole/3-Way Incandescent Dimmer, Tri-Color
- MPN: RH1103PTC
- UPC: 785007053272
- PPN: P-S-RH1103PTC
CAD
$82.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Upgrade your space with precise dimming control and exceptional style. This dimmer from the radiant® Collection is optimized for use with incandescent bulbs and fixtures. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- For use with incandescent bulbs and fixtures on typical residential (and light commercial) wiring. Usable in both single-pole and 3-way applications.
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- Features durable, high-impact resistant thermoplastic construction.

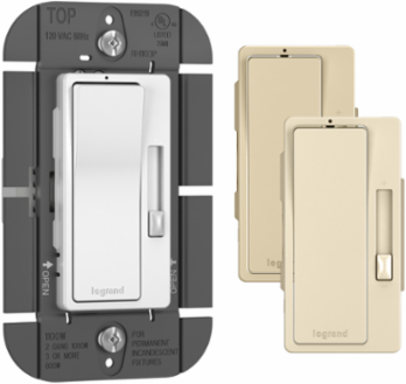

- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.25 in
- Height
- 4.25 in
- Type
- Dimmer
- Standard
- cULus
- Load Type
- Halogen
- Switch Type
- Paddle
- Standard
- CSA Listed
- Number of Poles
- 3-Way
- Frequency Rating
- 60 Hz
- Mounting Type
- Wall Box
- Wire Size
- #14 - #12 AWG
- Features
- Color Change Kit
- Application Sector
- Residential
- Features
- Low-End Trim (Dim Range)
- Dimming Compatibility
- Forward Phase
- Load Rating
- 120V 1100W (Incandescent)
- Warranty Type
- Limited Lifetime Warranty
- Color
- Ivory,Light Almond,White
- Material
- Steel,Thermoplastic
PresetYes
Width1.75 in
Country of OriginChina
Voltage120 VAC
StandardUL Listed
Switch TypeSlider
Indoor/OutdoorIndoor
FeaturesLocator Light
Load TypeIncandescent
Number of Switches1.0
Requires Neutral WireNo
Number of PolesSingle Pole
Load Rating120V 1100W (Halogen)
Special FeaturesThe radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation.
Wire Connection TypeScrew Terminals
Application SectorMulti-Dwelling Unit
Environmental ConditionsHumidity: Less than 95% non condensing
FinishMatte
Product LinePass & Seymour
