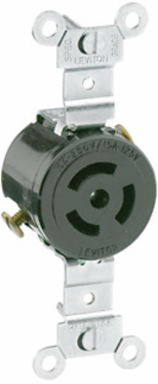

Leviton 7582 15/10 Amp Single Locking Receptacle, 125/250 Volt, Non-NEMA, Nylon Body, Black
- MPN: 7582
- UPC: 078477821565
- PPN: LEV-7582
CAD
$80.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15/10 Amp, 125 Volt/250 Volt, Non-NEMA, 3P, 3W, Single Locking Receptacle, Non-Grounding - BLACK
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
ColorBlack
Strap MaterialNickel-Plated Brass
Mechanical Specifications
- Product ID

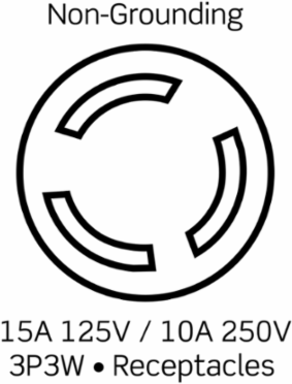

- NON-NEMA, 15A-125V/10A-250V
- Terminal ID
- 125 V: Brass-Hot, Copper-N/A, Silver-Neutral| 250 V: Brass-Hot, Copper-Hot, Silver-N/A
Terminal Accom.14-8 AWG
TerminationSide
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 15/10 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingNon-Grounding
Temperature RiseMax 30C at 250 cycles OL at 200 pct rated current
Wire3
