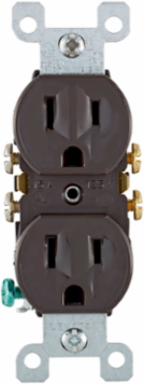

Leviton 5320-CP 15 Amp Duplex Receptacle Grounding Thermoplastic Brown, NEMA 5-15R
- MPN: 5320-CP
- UPC: 078477151303
- PPN: LEV-5320-CP
CAD
$1.61
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, With Ears Duplex Receptacle, Straight Blade, Residential Grade, Grounding, All Screws Backed Out Contractor Pack, Quickwire Push-In & Side Wired, Steel Strap, - Brown
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Leviton’s comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Product Features
- Amperage
- 15 A
- Color
- Brown
- Feature
- All Screws Backed Out
- Pole
- 2
- Terminal Accom.
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Torque Range
- 14 – 18 in.-lbs
- Voltage
- 125 VAC
- Wire
- 3
Body MaterialThermoplastic
Face MaterialThermoplastic
GroundingGrounding
Strap MaterialSteel
TerminationQuickwire Push-In & Side
TypeDuplex Receptacle
Warranty2-Year Limited
Standards & Certifications
- CSA C22.2 No. 42
- File 152105; Class 6233-01
- NOM
- NOM Certified
NEMAWD-6
UL 498File E13399
