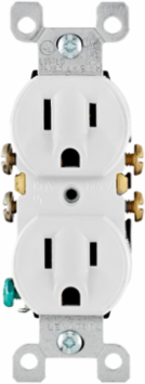

Leviton 5320-WCP 15 Amp Duplex Receptacle, 125 Volt, NEMA 5-15R, Grounding, White
- MPN: 5320-WCP
- UPC: 078477151426
- PPN: LEV-5320-WCP
CAD
$1.61
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, With Ears Duplex Receptacle, Straight Blade, Residential Grade, Grounding, All Screws Backed Out Contractor Pack, Quickwire Push-In & Side Wired, Steel Strap, - White
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Leviton’s comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- NEMA Configuration
- 5-15R
- Wires
- 3
- Type
- Duplex Receptacle
- Terminal Type
- Quickwire Push-In & Side Wired; Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- UL 498
- File E13399
- NOM
- NOM Certified
- Color
- White
Voltage125 VAC
Poles2
Torquing Range14 – 18 in.-lbs
MaterialThermoplastic, Steel Strap
GroundingYes
CSA C22.2 No. 42File 152105; Class 6233-01
RoHS CompliantFalse
