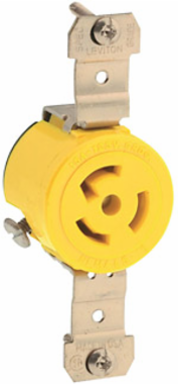

Leviton 47CM-10 15 Amp NEMA L5-15R Single Locking Receptacle, Industrial Grade, Yellow
Leviton 47CM-10 15 Amp NEMA L5-15R Single Locking Receptacle, Industrial Grade, Yellow
- MPN: 47CM-10
- UPC: 078477811078
- PPN: LEV-47CM-10
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$43.71/ EA
Description
15 Amp, 125 Volt, NEMA L5-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding, Corrosion-Resistant - YELLOW
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability. For use in marine and industrial environments.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
- Warranty
- 10-Year Limited
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13399
Material Specifications
- Base Material
- Nylon
- Face Material
- Nylon
- Line Contacts
- Nickel-Plated Brass .040 Thick
- Terminal Screws
- Nickel-Plated Brass 10-32
ColorYellow
Grounding ScrewNickel-Plated Brass 8-32
Strap MaterialNickel-Plated Brass
YokeNickel-Plated Brass .050 Thick
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Termination
- Side
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Body Material
- Nylon
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
