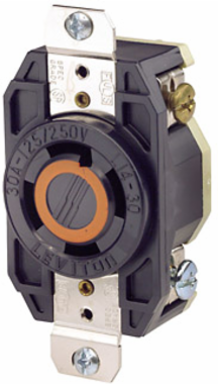

Leviton 2710 30 Amp Flush Mount Locking Receptacle NEMA L14-30R, 125/250 Volt, Industrial Grade
Leviton 2710 30 Amp Flush Mount Locking Receptacle NEMA L14-30R, 125/250 Volt, Industrial Grade
- MPN: 2710
- UPC: 078477809617
- PPN: LEV-2710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$52.41/ EA
Description

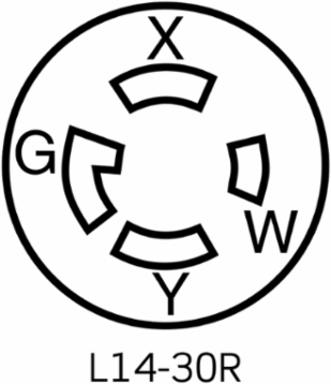

30 Amp, 125/250 Volt, NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for generators and transfer switches
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
- Warranty
- Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13399
Material Specifications
- Base Material
- Valox
- Face Material
- Ultramid
- Line Contacts
- Brass
- Terminal Screws
- Chromated Brass
ColorBlack
Grounding ScrewChromated Brass
Strap MaterialNickel-Plated Brass
Mechanical Specifications
- Cord Range
- 0.595 to 1.150
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 14 – 16 in-lbs
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.14-8 AWG
TerminationBack & Side
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Product Features
- Brand
- V-0-Max
Device TypeLocking Receptacle
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire4
AC Horsepower Ratings
- At Rated Voltage
- 2 HP L-L / 2 HP L-N
