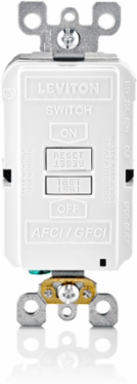

Leviton AGRBF-W 20 Amp SmartlockPro® Dual Function Blank Face AFCI/GFCI Receptacle, 125 Volt
Leviton AGRBF-W 20 Amp SmartlockPro® Dual Function Blank Face AFCI/GFCI Receptacle, 125 Volt
- MPN: AGRBF-W
- UPC: 078477803325
- PPN: LEV-AGRBF-W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$47.10/ EA
Description
20 Amp Feed-Through, 125 Volt Dual Function Blank AFCI/GFCI Receptacle/Outlet, Monochromatic, back and side wired, wallplate/faceplate sold separately, self-grounding clip included – White
Features
- May be used for outlet branch circuits where AFCI protection is desired but is located where an outlet is not needed
- Ideal for installing in locations to make AFCI protection “readily accessible” per NEC requirements
- May be used on circuits feeding lighting loads as well as other loads such as smoke detectors where a receptacle is not used
- Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
- Engineered to meet the latest UL standard for auto-monitoring (self-test); periodically conducts an automatic internal test to confirm that GFCI protected power is available
- On initial power up, tests the GFCI circuit within 3 seconds
- Patented Lockout Action prevents reset if the device is damaged
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
- TEST and RESET buttons are readily accessible on the face of the device
- Improved immunity to high frequency noise reduces nuisance tripping
- Superior resistance to electrical surges and over-voltages enhancing reliability
- Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed)
- One-piece T-design trip latch mechanism provides efficient operation
- Impact-resistant thermoplastic cover and body for durability
- Expanded wiring options with nine back-wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
- Compatible with all Decora® devices and wallplates for multi-gang installation option; available in select popular colors
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping The SmartlockPro® Dual Function AFCI/GFCI Receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology, the SmartlockPro Dual Function AFCI/GFCI Receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and, if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro Dual Function AFCI/GFCI Receptacle offers a National Electrical Code® (NEC®) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA-C22.2 No. 144.1-06
- File LR-57811
- NOM
- Yes
- UL1699.A
- File E342815
CSACSA-C22.2 No. 270-14
NEMAWD-6
UL 943File E48360
Material Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Grounding Screw
- Plated Steel
- Notes
- Wallplate Sold Separately
- Strap Material
- Galvanized Steel
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Yoke
- Zinc-Plated Steel
ClampsBrass
GroundingSelf-Ground Clip
Line ContactsBrass Double-Wipe .031 Thick
Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG
WiringUse with copper or copper-clad wire. No aluminum wiring
Mechanical Specifications
- Amperage
- 20 A Feed-Through
- Pole
- 2
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Voltage
- 125 VAC
- Wire
- 3
ColorWhite
Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG
TerminationBack & Side
Warranty2-Year Limited
WiringUse with copper or copper-clad wire. No aluminum wiring
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Type
- Blank Face
WallplateNot Included
Environmental Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Grounding
- Self-Ground Clip
- Line Contacts
- Brass Double-Wipe .031 Thick
- Operating Temperature
- -35C to +66C
- Yoke
- Zinc-Plated Steel
ClampsBrass
FlammabilityRated V-2 per UL 94
Grounding ScrewPlated Steel
NotesWallplate Sold Separately
Strap MaterialGalvanized Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 1699A and UL 943
- Operating Temperature
- -35C to +66C
FlammabilityRated V-2 per UL 94
Temperature RiseMaximum 30 degrees C after 250 cycles OL at 200 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Temperature Rise
- Maximum 30 degrees C after 250 cycles OL at 200 percent rated current
Dielectric VoltageWithstands 1250VAC per UL 1699A and UL 943
