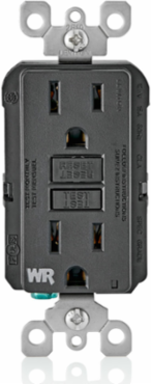

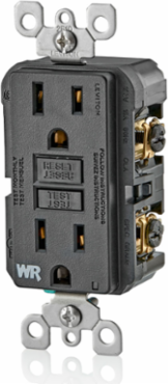

Leviton GFWR1-E Weather-Resistant GFCI Outlet 15 Amp, Self-Test, Black
Leviton GFWR1-E Weather-Resistant GFCI Outlet 15 Amp, Self-Test, Black
- MPN: GFWR1-E
- UPC: 078477709108
- PPN: LEV-GFWR1-E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$52.42/ EA
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather-Resistant GFCI, Monochromatic, back and side wired, wallplate/faceplate sold separately - Black
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout

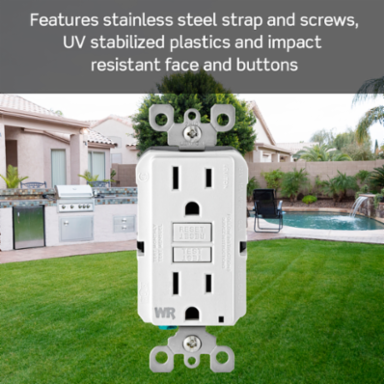

- Stainless steel strap and screws, cold impact resistant face and buttons
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages

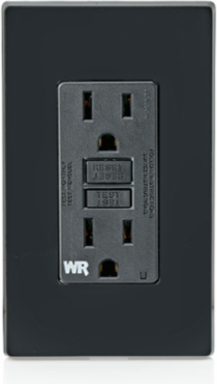

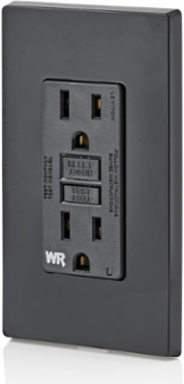

- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Specifications
Standards and Certifications
- ANSI
- C-73
- Fed Spec WC-596
- Yes
- NOM
- Yes
- UL498
- Yes
CSA-C22.2 No. 144.1-06File LR-57811
MIL-SPECA-A-55459-SB
UL 943File E48380
Material Specifications
- Body Material
- Polycarbonate
- Face Material
- Polypropylene
- Line Contacts
- Brass Double Wipe .031 Thick
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Weather Resistant
- Yes
ClampsBrass
Grounding ScrewStainless Steel
NotesWallplate Sold Separately
Terminal Accom.14-10 AWG
Terminal ScrewsStainless Steel
YokeStainless Steel
Mechanical Specifications
- Amperage
- 15 A
- Brand
- SmartlockPro
- Face Material
- Polypropylene
- Fed Spec WC-596
- Yes
- Grounding
- Green Ground Screw
- Pole
- 2
- Screw Terminal Torque
- 14-18 in-lbs
- Strap Material
- Stainless Steel
- Terminal Accom.
- 14-10 AWG
- Termination
- Back & Side
- Type
- Weather-Resistant GFCI
- Wallplate
- Not Included
- Wire
- 3
Body MaterialPolycarbonate
ColorBlack
FeatureSelf-Test
GradeResidential/Commercial Specification Grade
NEMA5-15R
Product IDRatings are permanently marked on device
Standards and CertificationsUL/CSA, NEMA WD6
Tamper ResistantNo
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Trip LevelClass A, 5mA plus or minus 1mA
Voltage125 VAC
Warranty2-Year Limited
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Environmental Specifications
- Body Material
- Polycarbonate
- Face Material
- Polypropylene
- Line Contacts
- Brass Double Wipe .031 Thick
- Operating Temperature
- -35C to +66C
- Yoke
- Stainless Steel
ClampsBrass
Grounding ScrewStainless Steel
NotesWallplate Sold Separately
Terminal ScrewsStainless Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
Operating Temperature-35C to +66C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Short Circuit Current Rating
- 10KA
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
