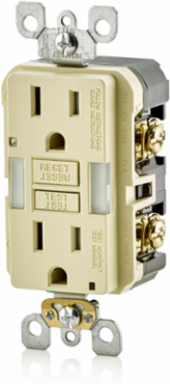

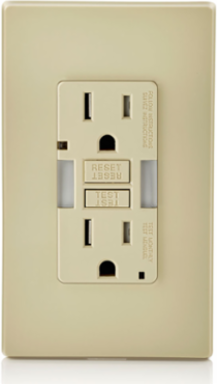

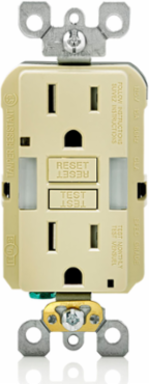

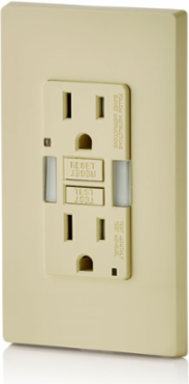

Leviton GFNL1-I 15 Amp Self-Test Tamper-Resistant GFCI Outlet with Guide Light, 125 VAC
Leviton GFNL1-I 15 Amp Self-Test Tamper-Resistant GFCI Outlet with Guide Light, 125 VAC
- MPN: GFNL1-I
- UPC: 078477714775
- PPN: LEV-GFNL1-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.83/ EA
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro Slim Guide Light GFCI, Monochromatic, back and side wired, self-grounding clip included, wallplate/faceplate sold separately - Ivory
Features
- Sensor provides automatic ON/OFF based on ambient lighting
- Dual lens provides visible light with a variety of plugs or transformers
- Custom designed lenses with edge-mounted LEDs improve light dispersion
- Is energy-efficient, uses approx. 1W of electricity - No bulbs to replace
- Saves space by eliminating the need to use an outlet for a plug-in night light
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated

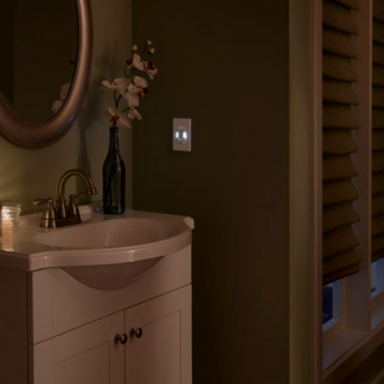

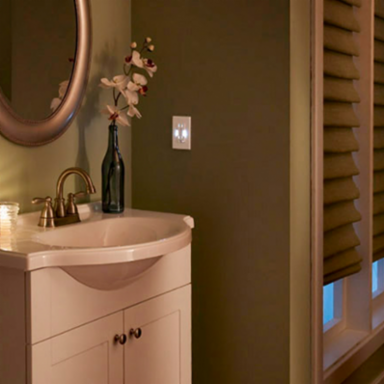

- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping The Self-test SmartlockPro Slim GFCI/Guide Light is a great way to add an extra element of safety when it’s dark without losing outlet space in kitchens, bathrooms, laundry rooms and hospitality guest suites. Instead of needing to plug in a nightlight and take up an outlet space, the device offers dual LED guide lights that turn ON and OFF automatically based on light levels and uses only 1W of electricity. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The Self-test SmartlockPro Slim GFCI/Guide Light is the smart choice in ground fault circuit interrupter protection.
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA-C22.2 No. 144.1-06
- File LR-57811
- NOM
- Yes
- UL498
- Yes
CSA C22.2 No. 42Yes
Fed Spec WC-596Yes
UL 943File E48380
Material Specifications
- Body Material
- Thermoplastic
- Face Material
- Thermoplastic
- Line Contacts
- Brass Double-Wipe .031 Thick
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Yoke
- Zinc-Plated Steel
ClampsBrass
Grounding ScrewPlated Steel
NotesWallplate Sold Separately
Terminal Accom.14-10 AWG
Terminal ScrewsPlated Steel
Mechanical Specifications
- ANSI
- C-73
- Body Material
- Thermoplastic
- Color
- Ivory
- Feature
- Self-Test
- Grade
- Residential/Commercial Specification Grade
- NEMA
- 5-15R
- Pole
- 2
- Screw Terminal Torque
- 14-18 in-lbs
- Strap Material
- Galvanized Steel
- Terminal Accom.
- 14-10 AWG
- Termination
- Back & Side 20A Feed-Thru
- Type
- Combination with Light
- Warranty
- 2-Year Limited
Amperage15 A
BrandSmartlockPro
Face MaterialThermoplastic
Fed Spec WC-596Yes
GroundingSelf Grounding
NotesWallplate Sold Separately
Product IDRatings are permanently marked on device
Standards and CertificationsUL/CSA, NEMA WD6
Tamper ResistantYes
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Trip LevelClass A, 5mA plus or minus 1mA
Voltage125 VAC
Wire3
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Wallplate
- Not Included
Environmental Specifications
- Body Material
- Thermoplastic
- Face Material
- Thermoplastic
- Line Contacts
- Brass Double-Wipe .031 Thick
- Operating Temperature
- -35C to +66C
- Yoke
- Zinc-Plated Steel
ClampsBrass
Grounding ScrewPlated Steel
NotesWallplate Sold Separately
Terminal ScrewsPlated Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
Operating Temperature-35C to +66C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Short Circuit Current Rating
- 10KA
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
