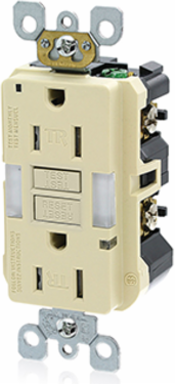

Leviton X7592-I 15 Amp 125 Volt Tamper-Resistant GFCI Outlet with 20 Amp Feed-Through and Ivory Finish
Leviton X7592-I 15 Amp 125 Volt Tamper-Resistant GFCI Outlet with 20 Amp Feed-Through and Ivory Finish
- MPN: X7592-I
- PPN: LEV-X7592-I
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$49.68/ EA
Features
- Sensor provides automatic ON/OFF based on ambient lighting.
- Dual lens provides visible light with a variety of plugs or transformers.
- Custom designed lenses with edge-mounted LEDs improve light dispersion.
- Is energy-efficient, uses approx. 1W of electricity - No bulbs to replace .
- Saves space by eliminating the need to use an outlet for a plug-in night light.
- Reduced depth of SmartlockPro Slim GFCI makes it easier to install in any electrical box, even shallow ones.
- Terminals allow for easy wiring options – back and side wire capable.
- External back wire clamps provide visual indication of proper wire seating.
- Withstands high torque and resists wire pullout.
- Standard brass self-grounding clip.
- Automatically tests the GFCI every time the RESET button is pushed in. The GFCI will not reset if the GFCI circuit is not functioning properly.
- By blocking reset of the GFCI if protection has been compromised, SmartlockPro Slim GFCI reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not.
- A line-load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices. A white LED indicator on the GFCI's face also illuminates to alert the installer to the line-load wiring reversal.
- Trip threshold meets or exceeds UL requirements for tripping time.
- Improved immunity to high-frequency noise reduces nuisance tripping.
- Advanced electronics design provides superior resistance to electrical surges and over-voltages.
- Compatible with all Decora® devices and wallplates; available in select Decora colors.
- UL Fed Spec WC-596 rated.
Specifications
Standards and Certifications
- NOM
- 057
- CSA-C22.2 No. 144.1-06
- File LR-57811
- Fed Spec WC-596
- Yes
- UL 943
- File E48380
CSA C22.2 No. 42Yes
UL498Yes
ANSIC-73
NEMAWD-6
Material Specifications
- Line Contacts
- Brass Double-Wipe .031 Thick
- Terminal Screws
- Plated Steel
- Grounding Screw
- Plated Steel
- Yoke
- Zinc-Plated Steel
Face MaterialThermoplastic
NotesWallplate Sold Separately
Body MaterialThermoplastic
ClampsBrass
Mechanical Specifications
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Accom.
- 14-10 AWG
Product IDRatings are permanently marked on device
Product Features
- Amperage
- 15 A
- Face Material
- Thermoplastic
- Color
- Ivory
- Notes
- Wallplate Sold Separately
- Fed Spec WC-596
- Yes
- Grade
- Residential
- Wire
- 3
- Grounding
- Self Grounding
- Termination
- Back & Side 20A Feed-Thru
- Voltage
- 125 VAC
Warranty2-Year Limited
NEMA5-15R
Country Of OriginChina
Strap MaterialGalvanized Steel
FeatureTamper-Resistant
Body MaterialThermoplastic
Pole2
Trip LevelClass A, 5mA plus or minus 1mA
Standards and CertificationsUL/CSA
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-35C to +66C
Electrical Specifications
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Short Circuit Current Rating
- 10KA
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
