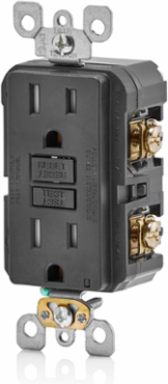

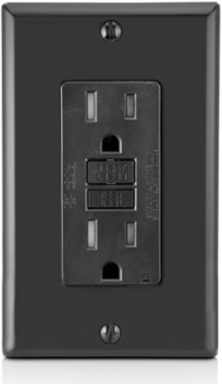

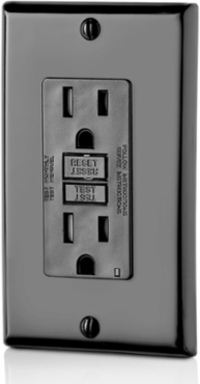

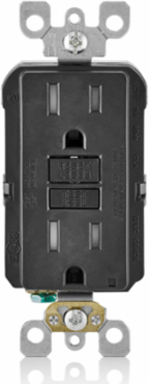

Leviton GFTR1-E 15 Amp Tamper-Resistant GFCI Outlet with LED Indicator, Self-Test & Black
Leviton GFTR1-E 15 Amp Tamper-Resistant GFCI Outlet with LED Indicator, Self-Test & Black
- MPN: GFTR1-E
- UPC: 078477487150
- PPN: LEV-GFTR1-E
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$22.16/ EA
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included - Black
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated.
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Specifications
- Amperage
- 15 A
- Short Circuit Current Rating
- 10 kA
- At Rated Voltage
- 1 HP
- Depth Protrusion
- 1.026 in
- Terminal Accommodation
- 14-10 AWG
- Pole
- 2
- Dielectric Voltage
- Withstands 1250 VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Terminal Screws
- Plated Steel
- Yoke
- Zinc-Plated Steel
- Grounding Screw
- Plated Steel
- Line Contacts
- Brass Double Wipe .031 Thick
- Body Material
- Polycarbonate
- NEMA
- 5-15R
- Standards and Certifications
- UL/CSA, NEMA WD6, CSA C22.2 No. 42, UL498, Fed Spec WC-596, NOM Yes, MIL-SPEC A-A-55459-SB
- Flammability
- Rated V-2 per UL 94
- Self-Test
- Automatic
- Lockout Feature
- Patented Lockout Action prevents reset if damaged
- Noise Immunity
- Improved immunity to high-frequency noise
- Country of Origin
- China
Voltage125 VAC
Trip LevelClass A, 5 mA ±1 mA
Operating Temperature-35C to +66C
Terminal Screw Torque14-18 in-lbs
Wire3
TerminationBack & Side Wired
MaterialPolycarbonate (Body), Thermoplastic (Faceplate), Nylon (Wallplate)
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Strap MaterialGalvanized Steel
ClampsBrass
Face MaterialThermoplastic
ColorBlack
GradeResidential/Commercial Specification Grade
RoHS CompliantFalse
Tamper ResistantYes
Status IndicatorLED Light (Green Normal, Red Alert, No LED No Power)
Torque ResistanceTerminals withstand high torque
Surge ResistanceAdvanced electronics resist surges and over-voltages
BrandSmartlockPro
