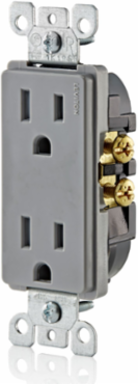

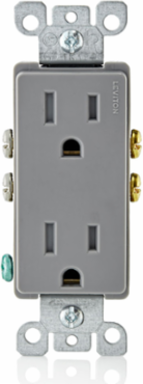

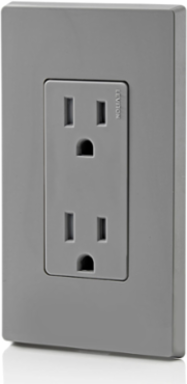

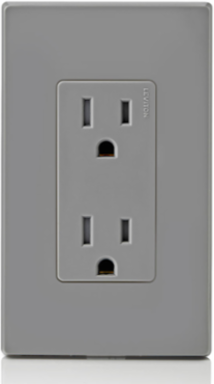

Leviton T5325-GY 15 Amp Tamper-Resistant Gray Duplex Outlet, 125 Volt, 2-Wire, Quickwire
- MPN: T5325-GY
- UPC: 078477438213
- PPN: LEV-T5325-GY
CAD
$2.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant - Gray
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Shallow depth for maximum wiring room
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- TR symbol on strap assures they meet the latest NEC requirements
- Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
- Limited 2-year warranty
- SAFE – Tamper-resistant offers protection from electrical shocks
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Quickwire push-in and side wiring for easy installation
- CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- NEMA
- 5-15R
- Wire
- 3
- Type
- Duplex Receptacle
- Grounding
- Grounding
- Material
- Thermoplastic nylon, Zinc-plated steel (mounting strap)
- CSA C22.2 No. 42
- File 152105; Class 6233-01
- RoHS Compliant
- False
- Company/brand
- Decora
Voltage120 VAC
Pole2
Torque Range14–18 in.-lbs
Blade TypeStraight Blade
TerminationQuickwire Push-In & Side
UL 498File E13399
NOMNOM Certified
Country of OriginUnited States
Warranty2 Year Limited
