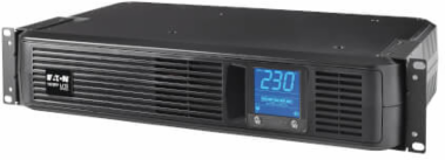

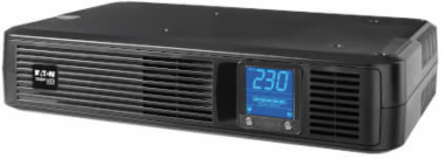

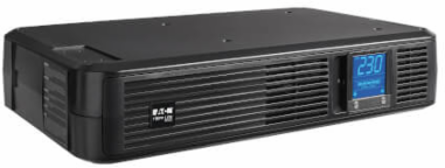

Tripp Lite SMX1500LCD 1500VA 900W Line-Interactive UPS - 8 C13 Outlets, AVR, 230V, 50/60 Hz, USB, DB9, LCD, 2U Rack/Tower
Tripp Lite SMX1500LCD 1500VA 900W Line-Interactive UPS - 8 C13 Outlets, AVR, 230V, 50/60 Hz, USB, DB9, LCD, 2U Rack/Tower
- MPN: SMX1500LCD
- UPC: 037332126078
- PPN: TRP-SMX1500LCD
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1136.54/ EA
Description
1500VA 900W Line-Interactive UPS - 8 C13 Outlets, AVR, 230V, 50/60 Hz, USB, DB9, LCD, 2U Rack/Tower
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 230V nominal output during brownouts and overvoltages
- Easy-to-read LCD allows real-time monitoring of voltage, battery status and other data
- High 96% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 2-year limited warranty
- 1.5kVA/900W/230V Battery Backup for PC Networks, Security Systems or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout

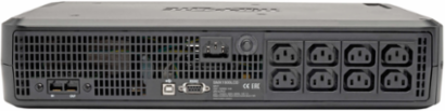

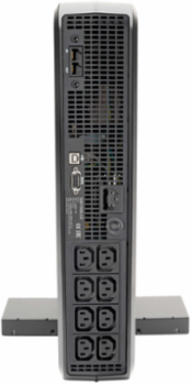

- 8 C13 Outlets Protect Your Connected Components
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- Combats Line Noise That Can Harm Equipment
- Designed for High Efficiency to Help You Save Money and Protect the Environment
- Alarm and Easy-to-Read LCD Keep You Informed 24/7
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns

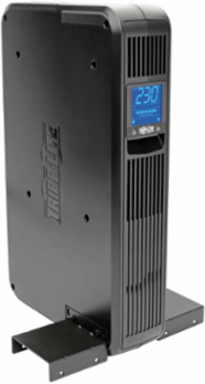

- Versatile Installation Options
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 360
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
UPS Dataline Suppression DetailsRJ11 telephone cable included
Battery
- Full Load Runtime (min.)
- 4.5 min. (900w)
- DC System Voltage (VDC)
- 24
- Internal UPS Replacement Battery Cartridge
- IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMX1500LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMX1500LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery
- Battery Replacement Description

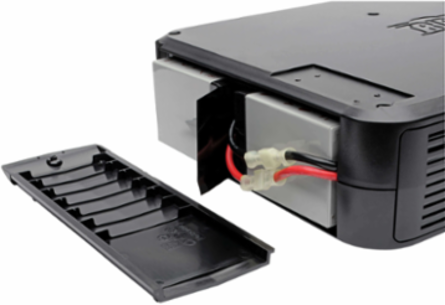

- Hot-swappable, user-replaceable internal battery cartridge
Half Load Runtime (min.)12 min. (450w)
Battery Recharge Rate (Included Batteries)4.5 hours from 10% to 90%

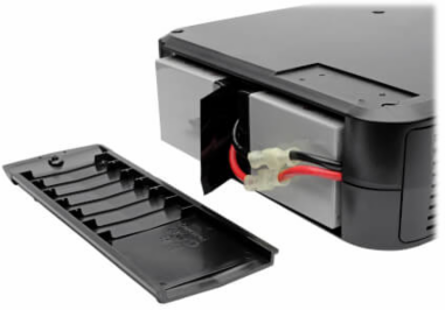

Battery AccessIncludes battery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia)
UPS Certification DetailsCE Class A (EMI); CE IEC 62040-1-1, 62040-1-2
Physical
- Cooling Method
- Convection
- Installation Form Factors Supported with Included Accessories

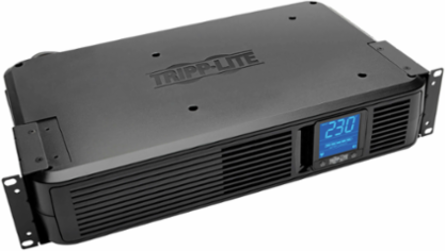

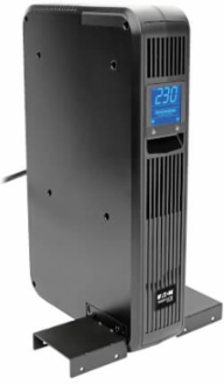

- 2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower
- Primary Form Factor
- Rackmount
- Primary UPS Height (mm)
- 89
- Rack Height
- 2U
- Shipping Weight (lbs.)
- 34.55
- UPS Power Module Dimensions (hwd, in.)
- 3.5 x 17.25 x 10.5
- UPS Power Module Weight (lbs.)
- 29.4

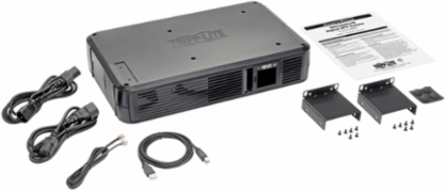

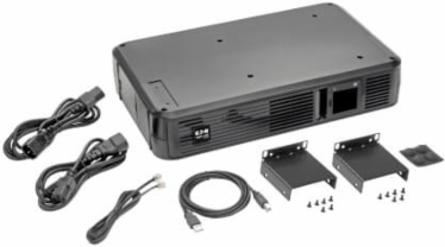

Included Mounting Accessory DescriptionIncluded mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement
Minimum Required Rack Depth (inches)13.5
Primary UPS Depth (mm)267
Primary UPS Width (mm)438
Shipping Dimensions (hwd / in.)7.80 x 15.28 x 21.77
UPS Housing MaterialABS
UPS Power Module Weight (kg)13.34
User Interface, Alerts & Controls

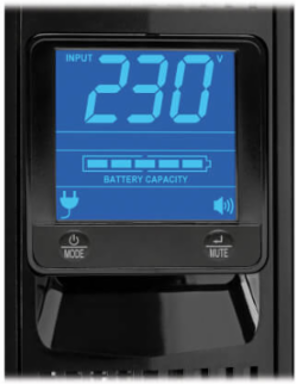

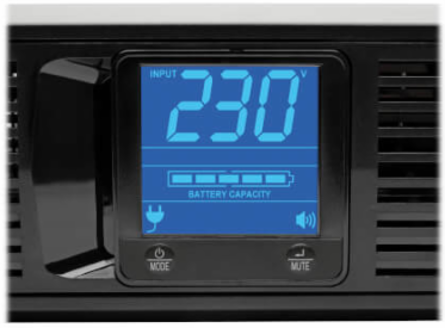

- Front Panel LCD Display

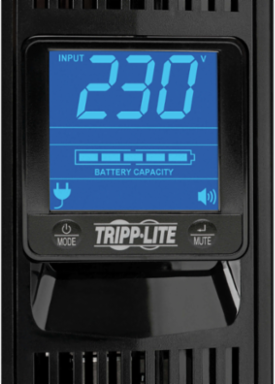

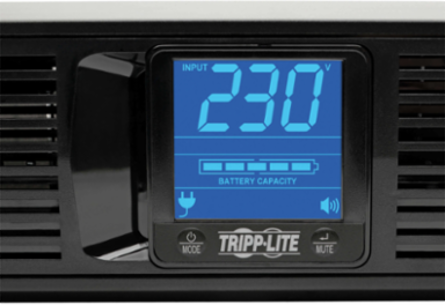

- Backlighted LCD screen offers detailed UPS status information, configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage, Output Voltage, Estimated Runtime (minutes), Output Load Percentage, Output Load Wattage, Battery Charge Percentage, Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display; CONFIGURATION OPTIONS include Power Sensitivity, LCD Status Information Scrolling, Alarm Disable, LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement
- Alarm Cancel Operation
- Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced, alarm will re-sound to indicate low-battery status
- LED Indicators
- Front panel LCD display
SwitchesON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel, plus selection and confirmation of on-screen configuration options
Audible AlarmAudible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual)
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 144 to 282
- Undervoltage Correction
- Input voltages between 177 and 199 are boosted by 14%
Overvoltage CorrectionInput voltages between 245 and 282 are reduced by 12%
Severe Undervoltage CorrectionInput voltages between 144 and 176 are boosted by 30%
Input
- Rated input current (Maximum Load)
- 4.4A
- UPS Input Connection Type
- C14 inlet
- Input Circuit Breakers
- 5A
Nominal Input Voltage(s) Supported230V AC
UPS Input Connection DescriptionChassis mounted C14 inlet accepts user-supplied AC power cord with country specific cordsets
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 900
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation (Line Mode)
- -18%, +8%
- Included Output Power Cables
- Includes 2 C13 to C14 output power cables.
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 220V; 230V; 240V
- Individually Controllable Load Banks
- No
Output kVA Capacity (kVA)1.5
Nominal Voltage Details230V nominal output in battery mode
Frequency Compatibility DetailsAutomatic frequency selection
Output Voltage Regulation (Battery Mode)+/- 5%
Hot-Swap PDU optionsPDUBHV10 (2U / 8 C13 outlets)
Output AC Waveform (Battery Mode)PWM sine wave

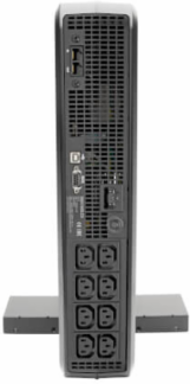

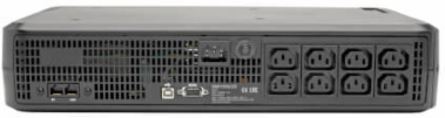

Output Receptacles(8) C13
Communications
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Communications Cable
- USB cabling included
- Communications Interface
- USB (HID enabled); DB9 Serial
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 542
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)133
AC Mode Efficiency Rating (100% Load)96%
Overview
- UPC Code
- 037332126078
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS
Warranty
- Product Warranty Period (International)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 3 milliseconds (AC to battery mode) / 2 milliseconds (battery to AC mode)
- High Voltage Transfer to Battery Power (Setpoint)
- 282
Low Voltage Transfer to Battery Power (Setpoint)144
