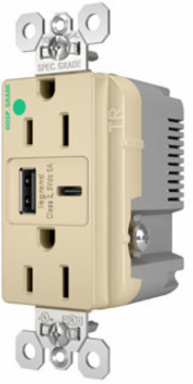

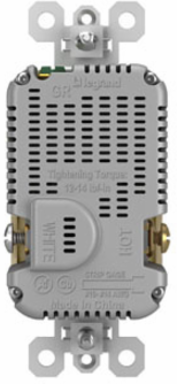

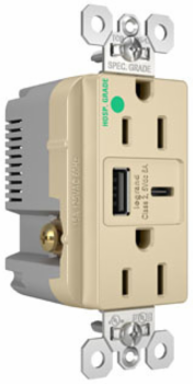

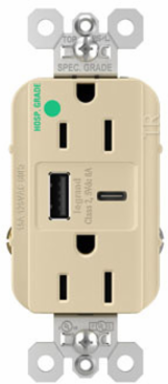

Pass & Seymour TR15HUSBAC6I 15A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle with USB A/C Ports, 1.425 Inch Depth, Ivory

MPN: TR15HUSBAC6I
UPC: 785007207873
PPN: P-S-TR15HUSBAC6I
UNSPSC: 39121406

$86.62

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle with USB A/C Ports, 1.425 Inch Depth, Ivory

Features

Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port.
Posted terminal screws and external back-wire pressure plates for more productive and reliable terminations.
Reinforced nylon USB Type-A ports to withstand abuse over the life of the product.
Type-A and Type-C ports carry a minimum rating of 10,000 insertions.
Slim design allows for installation in standard depth wall boxes.
Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Height	2.677 in
Color	Ivory
Amperage	15.0 A
USB Amperage	6.0 A
USB Wattage	15.0 W
Application Sector	Commercial; Healthcare
NEMA Configuration Code	5-15R
Outlet Type	Hospital Grade; Tamper-Resistant; USB-Charging
Wall Plate Included	No
Features	USB-C Charging; USB-A Charging
Number of Poles	Double Pole
Connection Location	Side Only

Depth	1.425 in
Width	1.693 in
Product Line	Pass & Seymour
Number of USBs	2.0
Wire Connection Type	Screw Terminals
Warranty Type	1-Year Limited Warranty
Number of Gangs	1
Number of Wires	3.0
Is Tamper-Resistant	Yes
Indoor/Outdoor	Indoor
Voltage	125.0 V
Wire Size	14 - 10 AWG
Number of Receptacles	2.0
