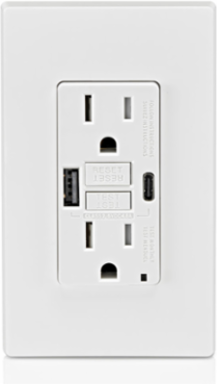

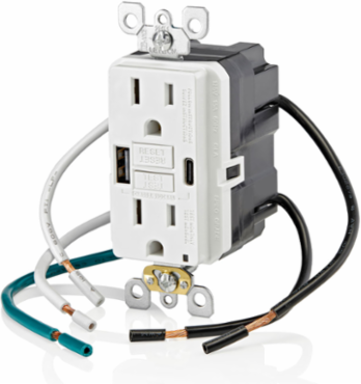

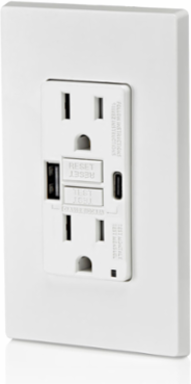

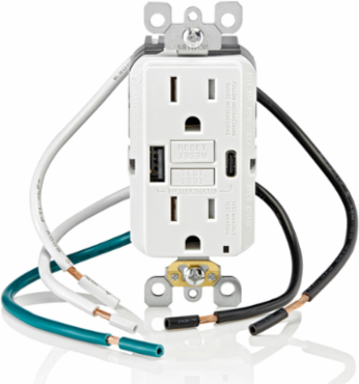

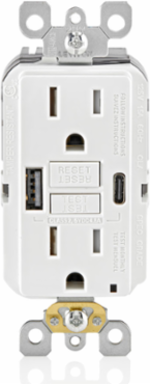

Leviton GUAC1-W SmartlockPro GFCI USB In-Wall Charger Outlet 15A 125V 24W A/C White
- MPN: GUAC1-W
- UPC: 078477996089
- PPN: LEV-GUAC1-W
CAD
$76.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-Test SmartlockPro® Self-Test GFCI Combination Type A/C USB In-Wall Charger, Wire Leads, NEMA 5-15R, 24W (4.8 Amps), Type-A/C USB Chargers, screws and self-grounding clip included – White
Features
- SAFE – Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault
- FAST CHARGING – Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge
- CODE REQUIRED – Fulfill NEC® requirements anywhere GFCI protection is needed
- SIMPLE – Status indicator light provides simple, intuitive feedback
- INSTALL – Requires extra deep wallbox for installation
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico - Pending
RoHS CompliantFalse
Material Specifications
- Body Material
- Thermoplastic
- Cover Material
- Thermoplastic
- Grade
- Residential/Commercial Specification Grade
- Notes
- Wallplate not included
- Strap Material
- Galvanized Steel
- Yoke
- Zinc-Plated Steel
ColorWhite
Face MaterialThermoplastic
Line ContactsBrass Double Wipe .031 Thick
Product IDRatings are permanently marked on device
Terminal IDGreen lead - GND. Line and load both have: Black lead - Hot, White lead - Neutral
Mechanical Specifications
- Pole
- 2
- Trip Level
- Class A, 5mA plus or minus 1mA
- Voltage
- 125 VAC
Tamper ResistantYes
TypeGFCI/USB A/C Combination
Wire5
Product Features
- Amperage
- 15 A
- Feature
- Self-Test
- Product Type
- GFCI/Outlet/USB Combo
- Wallplate
- Not included
BrandSmartlockPro
NEMA5-15R
TerminationWire leads (12AWG)
Warranty2-Year Limited
Environmental Specifications
- Flammability
- UL94, 5VA
- Operating Temperature
- -10°C to 40°C
Grounding WireGreen ground wire
Electrical Specifications
- Grounding
- Self-Grounding
- Ratings
- 15A - 125V, 4.8A @ 5V
- Voltage
- 125 VAC
Operating Temperature-10°C to 40°C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Standards & Certifications
- ANSI
- Yes
- CSA-C22.2 No. 144.1-06
- Yes
- Fed Spec WC-596
- No
- NOM
- Yes
- UL 498
- Yes
CSA C22.2 No. 42Yes
FCC Part 15Class B
ListedcCSAus
UL 1310Yes
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
