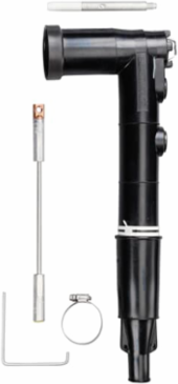

Thomas & Betts 167RLRG5260 15KV 200A LB REPLACE ELBOW F5260
- MPN: 167RLRG5260
- UPC: 783786327393
- PPN: T-B-167RLRG5260
- UNSPSC: 39121421
CAD
$851.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 15kV, Loadbreak Replacement Elbow Connector without Test Point, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
Specifications
Additional
| Voltage | 15 kV |
|---|---|
| Temperature Range | -40 to +65 C |
| Conductor Size | 3/0 AWG Compressed Stranded, 4/0 AWG Solid |
| Environmental Conditions | Fully Submersible |
| Application | For 15kV Class, 95kV BIL apparatus |
| Color | Black |
| Amperage | 200 A |
|---|---|
| Size | Cable Insulation Diameter 0.760 to 0.950 in |
| Material | Housing - EPDM Rubber |
| Standards | ANSI/IEEE Standard 386 |
| Country of Origin | United States (US) |
| Brand / Label | Elastimold |
