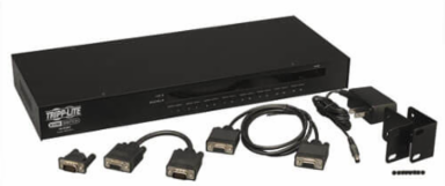

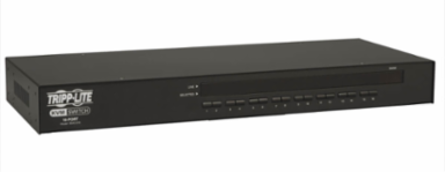

Tripp Lite B042-016 16-Port 1U Rack-Mount KVM Switch, USB/PS2, Max Resolution 2048 x 1536
- MPN: B042-016
- UPC: 037332141408
- PPN: TRP-B042-016
CAD
$1547.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
16-Port 1U Rack-Mount KVM Switch, USB/PS2, Max Resolution 2048 x 1536
Features
- NetController 16-Port, 1U rackmount KVM switch
- Control 16 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
- Control up to 256 computers by daisychaining up to 15 additional B040/42-Series KVM switches (Compatible with B040/42-Series KVM's only. Cannot be daisychained to other KVM series)
- P780-Series USB/PS2 combo KVM cables kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
- Compatible with all major operating systems
- 3-year limited warranty
Documentation & Downloads
Specifications
Additional
- Ports
- 16
- Max Supported Video Resolution
- 2048 x 1536 @ 60Hz
- Power Consumption
- 9.7 Watts
- Input Voltage
- 100-240V
- Input Current
- 1.0A
- Storage Temperature Range
- -4 to 140 F (-20 to 60 C)
- Unit Dimensions
- 1.8 x 16.1 x 6.5 in
- Weight
- 4.00 lbs (1.81 kg)
- Rackmount Size
- 1U, 19 in.
- Material
- SECC Steel
- Color
- Black
- Warranty
- 3-year limited warranty
- Technology
- PS/2, USB, VGA/SVGA
Max Number of Ports (Entire Chain)256
Max Distance Between Units98 ft (30 m)
Power Supply Output9V, 1.33A
Input Frequency50/60Hz
Operating Temperature Range32 to 104 F (0 to 40 C)
Relative Humidity0%-90% RH, Non-Condensing
Shipping Dimensions2.8 x 17.3 x 11.5 in
Shipping Weight6.60 lbs (2.99 kg)
External Power Supply PlugNEMA 1-15P North America
Connector PlatingNickel
ComplianceCE, FCC, RoHS, REACH
Number of Users1
