Tripp Lite B042-004 4-Port 1U Rack-Mount KVM Switch, VGA, USB/PS2 with On-Screen Display, 2048x1536
- MPN: B042-004
- UPC: 037332143266
- PPN: TRP-B042-004
CAD
$863.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

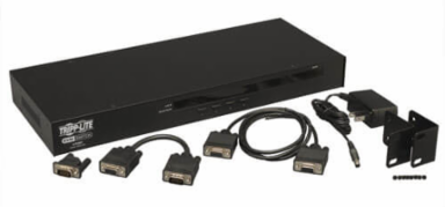

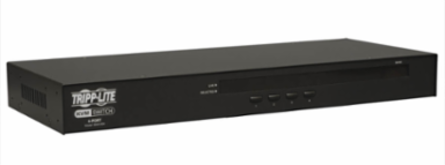

4-Port 1U Rack-Mount KVM Switch, VGA, USB/PS2 with On-Screen Display, 2048x1536
Features
- NetController 4-Port, 1U rackmount KVM switch
- Control 4 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
- Control up to 244 computers by daisychaining up to 15 additional B042-Series KVM switches
- P780-Series USB/PS2 combo KVM cables (purchased separately) allow you to connect either USB or PS/2 computers
- Compatible with all major operating systems
- 3-year limited warranty
Documentation & Downloads
Specifications
Additional
| Input Voltage | 100-240V, 50/60Hz, 0.3A |
|---|---|
| Power Consumption | 4.9 W |
| Video Resolution | 2048 x 1536 @ 60Hz |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Dimensions (H x W x D) | 1.8 x 16.1 x 6.5 in |
| Rackmount Size | 1U, 19 in |
| Connector Plating | Nickel |
| Monitor Interface | VGA |
| Color | Black |
| Output Voltage | 9V, 1A |
|---|---|
| Max Number of Ports (Entire Chain) | 244 |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 0%-90% RH, Non-Condensing |
| Weight | 4.00 lbs (1.81 kg) |
| Material | SECC Steel |
| Computer Interface | PS/2; USB |
| Certifications | CE, FCC, RoHS, REACH |
