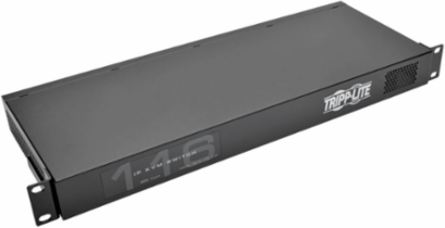

Tripp Lite B072-016-1-IP 16-Port KVM Switch, 1U Rack-Mount, IP Remote Access, Supports 1920x1080 Video
- MPN: B072-016-1-IP
- UPC: 037332141606
- PPN: TRP-B072-016-1-IP
CAD
$2096.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 16 computers from virtually anywhere with one Cat5 KVM switch. This KVM switch with IP remote access is a smart solution for efficient server control. Low-cost Cat5 cables let you locate servers up to 100 ft. away.
Features
- 16-port KVM switch provides control of computers/servers locally or via your network or the Internet
- Occupies just 1U of rack space
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- Simultaneous support for 2 users – 1 local, 1 remote
- Dual Ethernet ports assure uninterrupted remote access
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
Documentation & Downloads
Specifications
Additional
| Ports | 16 |
|---|---|
| Power Consumption | 50 Watts |
| Voltage Compatibility | 100; 110; 120; 127; 200; 208; 220; 230; 240 VAC |
| Number of Users | 2 (1 local, 1 remote) |
| Dimensions (H x W x D) | 1.7 x 6.7 x 17.3 in |
| Material of Construction | SECC steel (Electrogalvanized, Cold rolled, Coil) |
| Authentication Supported | RADIUS; LDAPS |
| Operating Temperature Range | 0 to 40 C (32 to 104 F) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
| Network Speed | 10/100 Mbps |
| Console Keyboard and Mouse Interface | USB |
| Console Monitor Interface | VGA |
| Virtual Media Speed | Up to 12 Mbps (using B078-101-USB2 Server Interface Unit) |
| Max Supported Video Resolution | Local: 1920 x 1200 @ 60 Hz; Remote: 1920 x 1080 @ 60 Hz |
|---|---|
| Input Current | 1.2A at 120V, 0.7A at 230V |
| Input Frequency | 50/60 Hz |
| Rackmountable | Yes, 1U |
| Weight | 4.7 lbs (2.13 kg) |
| Housing Material | Heavy-duty steel |
| Certifications | UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH, Federal Trade Agreements Act (TAA) compliant |
| Storage Temperature Range | -40 to 70 C (-40 to 158 F) |
| Authentication Supported | RADIUS, LDAP/S |
| Computer Keyboard and Mouse Interface | PS/2; USB |
| Computer Monitor Interface | VGA |
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Color | Black |
