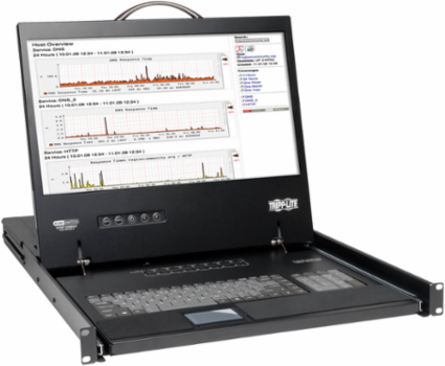

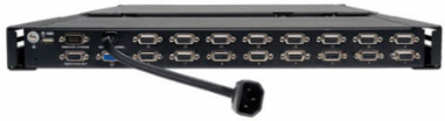

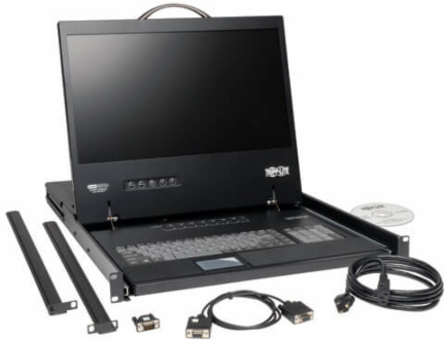

Tripp Lite B040-016-19 16-Port Rack-Mount KVM Switch with 19 Inch LCD, VGA Support and Daisy-Chaining to 256
- MPN: B040-016-19
- UPC: 037332140319
- PPN: TRP-B040-016-19
CAD
$3857.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 16 computers with a single KVM switch with integrated console, or increase the total connected computers to 256 by daisy-chaining. This KVM switch is a smart solution for space- and money-saving server control.
Features
- Uses just 1U of space in rack-mountable drawer
- 19” LCD screen supports video resolutions up to 1366 x 768
- Simplifies IT tasks with easy switching between all 16 ports
- Password protection prevents unauthorized access
- Compatible with all operating systems
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
| Voltage | 100; 110; 120; 127; 200; 208; 220; 230; 240 V |
|---|---|
| Input Current | 1.4A at 120V, 0.8A at 230V |
| Ports | 16 |
| Max Distance Between Units | 98 ft (30 m) |
| Port Selection Method | Pushbutton, Hotkey, OSD |
| On-Screen Display | Yes |
| Max CPU | 256 |
| Rackmount Unit | 1U |
| Weight | 32 lbs (14.51 kg) |
| Computer Keyboard and Mouse Interface | PS/2, USB |
| Computer Monitor Interface | VGA |
| Rackmountable | Yes |
| Material | SECC Steel (Electrogalvanized, Cold rolled, Coil) |
| Operating Temperature Range | 0 to 40 C (32 to 104 F) |
| Certifications | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, NOM, RoHS, REACH |
| NIAP-Certified Secure | No |
| LED Indicators | Green (CAPS LOCK, SCROLL LOCK, NUM LOCK, SELECTED); Red (LIVE) |
| Input Frequency | 50/60 Hz |
|---|---|
| Power Consumption | 30W (Line Mode), 5W (Standby Mode) |
| Max Number of Ports (Entire Chain) | 256 |
| Max Supported Video Resolution | 1366 x 768 @ 60Hz |
| USB Specification | USB 1.1 (up to 12 Mbps) |
| Cat5 KVM Switch | No |
| Console Screen Size | 19 in. |
| Dimensions (H x W x D) | 1.7 x 17.7 x 28.4 in. |
| Power Input Receptacle | IEC-320-C14 |
| PC/Server Connections | PS/2, USB, VGA |
| Console Aspect Ratio | 16:9 |
| Number of Users | 1 |
| Relative Humidity | 20% to 90% RH, Non-Condensing |
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Compliance | TAA Compliant |
| Color | Black |
