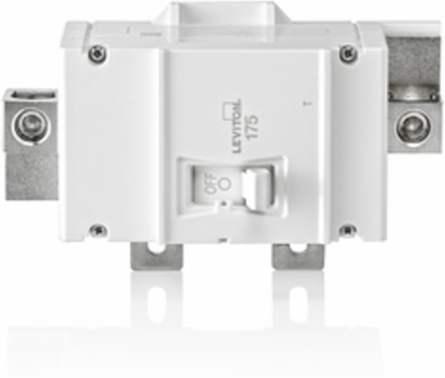

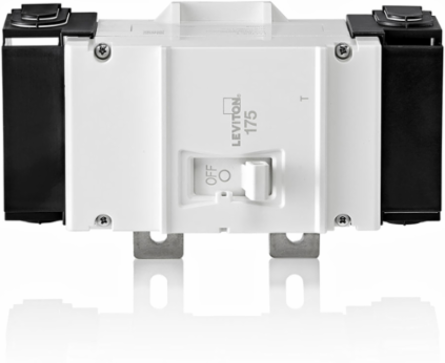

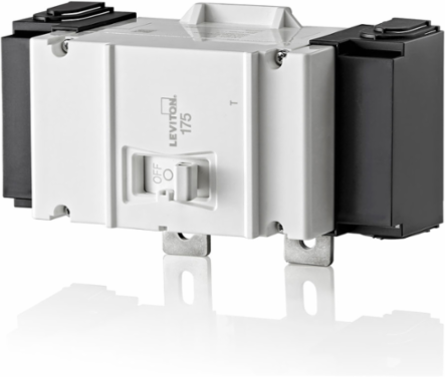

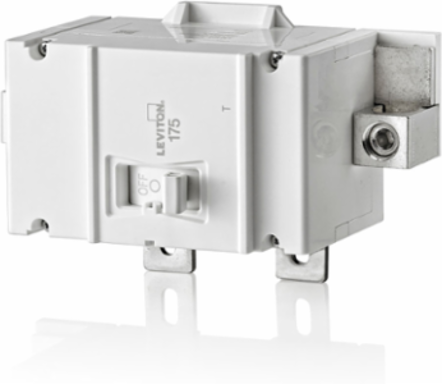

Leviton LM175-T 175A 2-Pole Thermal Magnetic Main Circuit Breaker
- MPN: LM175-T
- UPC: 078477225653
- PPN: LEV-LM175-T
CAD
$227.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
175A 2-Pole Main Circuit Breaker with Thermal Magnetic Trip Technology. 120/240V, 22kA Interrupt Rating
Features
- SAFE – Provides overload and short circuit protection for your home electrical system
- CONVERTIBLE – All Leviton Load Centers come standard with 225A bussing, making it easy to adapt to project scope changes on the fly without changing load centers
- PROPRIETARY – Designed for use with Leviton Load Centers
- MODERN DESIGN – Matches our Indoor Load Center's white powder coated finish for a sleek, modern appearance *For applications up to 60A when using copper wire; or 50A when using aluminum wire *Designed for Leviton Load Centers only
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantTrue
Mechanical Specifications
- Weight
- 2.83 lbs.
Wiring6 AWG - 300 MCM Cu/Al
Product Features
- Warranty
- 10-Year Limited
Electrical Specifications
- Amperage
- 175 A
- Operating Temperature
- -40C to +70C
- Type
- Main
Breaker TechnologyThermal Magnetic
Short Circuit Current Rating22 KA
Voltage120/240 VAC
Standards & Certifications
- CSA-C22.2 No. 5-02
- Yes
- FCC
- Yes
- UL 489
- Molded Case Circuit Breakers
EMC CompatibilityYes
RoHSYes
