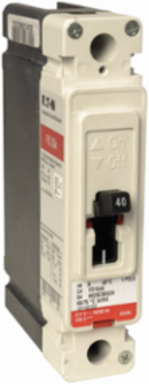

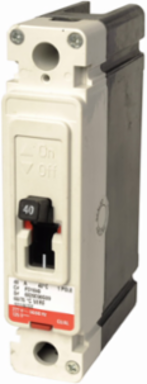

Eaton FD1070 Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Single-pole, 70 A, 347 Vac, 125 Vdc, 35 kAIC at 277 Vac, 18 kAIC at 347 Vac, Load side, 50/60 Hz
- MPN: FD1070
- UPC: 786679312179
- PPN: CUT-FD1070
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Single-pole, 70 A, 347 Vac, 125 Vdc, 35 kAIC at 277 Vac, 18 kAIC at 347 Vac, Load side, 50/60 Hz
Documentation & Downloads
Specifications
Key Specifications
- Series
- Series C
- Frame
- F
- Frequency rating
- 50/60 Hz
- Terminals
- Load side
- Amperage Rating
- 70A
- Number of poles
- Single-pole
Interrupt rating35 kAIC at 277 Vac
Circuit breaker typeFD
Circuit breaker frame typeComplete breaker
Voltage rating347 Vac, 125 Vdc
Trip TypeFixed thermal, fixed magnetic
General
- UPC
- 786679312179
- Product Height
- 6 in
- Product Weight
- 3 lb
- Certifications
- UL Listed
Product Length/Depth3.38 in
Product Width1.38 in
WarrantyEaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
