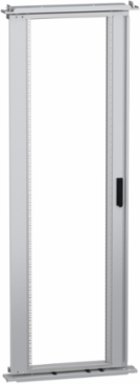

Schneider Electric NSYRSWC45 Spacial SF 19" Swing Rack - 2200mm x 800mm - 45 Modules - Steel
- MPN: NSYRSWC45
- PPN: SCH-NSYRSWC45
CAD
$1359.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF / SM swing rack centered 19 inches. 2200 x 800 mm. 45 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. Ball lock type in handle. Zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, United States
- Width
- 31.5 in
Height86.61 in
Depth2101 mm
Physical Attributes
- Color
- side plate Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 800 mm swing rack supports, 1 19" swing rack, 2 side plates with ball-lock handle
- Carbon Footprint Of The Distribution Phase [A4]
- 5.96744684, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 6.873753787, 7 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- adjustable in depth every 25 mm
- Energy Efficiency Optimized
- False
- Lock Type
- handle with ball lock
- Mounting Location
- on structure of enclosure
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Rack Position
- centered
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Recyclability Potential, In %
- 98
- Height Useful
- 2200 mm
- Width Real
- 800 mm
- Enclosure/Cubicle Description
- floor-standing enclosure
- Number Of Units 19"
- 45
- Package Weight(Lbs)
- 29.000 kg
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -4453.9334
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 2200 mm, - H: 2200 mm, - H: 2200 mm, - H: 2200 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]73 kg CO2 eq., 72.87627572
Carbon Footprint Of The Manufacturing Phase [A1 To A3]135 kg CO2 eq., 134.6986724
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationelectronic application
Fixing Modeby fixing element
Materialsteel
Permanent Permissible Load3.75 kg per unit with a maximum of 150 kg
Product Or Component Type19" rack
Rack Coveragecomplete
Rack Typeswing
ReturnabilityNo
Surface Finishzinc coated
Total Lifecycle Carbon Footprint220 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Height Nominal2200 mm
Width Nominal800 mm
Accessory / Separate Part Categorymounting accessory
Opening Of The 19" Racksreversible 120 °
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle11389.2969
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-4453.9334
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 220.4161488
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- 19" rack
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
