Schneider Electric NSYRSW45 Spacial SF 19 Inch Swing Rack 2200x800 mm 45 Modules
Schneider Electric NSYRSW45 Spacial SF 19 Inch Swing Rack 2200x800 mm 45 Modules
- MPN: NSYRSW45
- PPN: SCH-NSYRSW45
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1220.62/ EA
Description

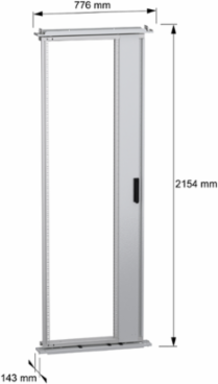

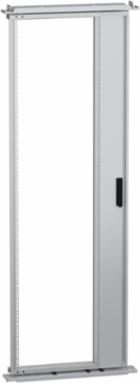

Spacial SF / SM swing rack off-centered 19 inches. 2200 x 800 mm. 45 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. Ball lock type in handle. Steel made, zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
Features

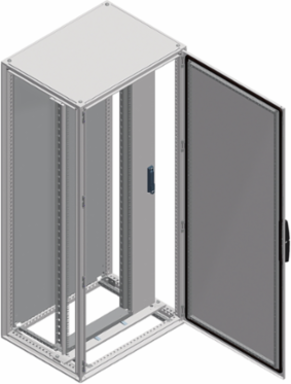

- To be coupled to enclosures with widths of 800 mm.
- Can be moved depthwise with a pitch of 25 mm.
- Reversible opening direction: Left/right.
- Locking system, top and bottom, with 5-mm double-bar key.
- Maximum opening: 130° (option of opening to 180° using 180° hinges).
- Material: Zinc-coated steel and steel painted
- Maximum load: 3.75 kg/unit with a max of 150 kg Installation
- PanelSet SF - SM
- Other mounting options: Consult us Maximum equipment installation depth:
- Off-center 19" swing rack: 470 mm
Specifications
Physical Attributes
- Color
- side plate Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 800 mm swing rack supports, 1 hinged rack, 1 side lid with handle
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- electronic application
- Fixing Mode
- by fixing element
- Material
- steel
- Package Weight Lbs
- 31.000 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1109023EN
- Enclosure Cubicle Description
- floor-standing enclosure
- Rack Position
- off-centered
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 2200 mm, - H: 2200 mm, - H: 2200 mm, - H: 2200 mm
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Lock Typehandle with ball lock
Mounting Locationon structure of enclosure
Permanent Permissible Load3.75 kg per unit with a maximum of 150 kg
Product Or Component Type19" rack
Rack Typeswing
ReturnabilityNo
Sustainable PackagingNo
Medium DescSpacial SF 19" swing rack - 2200x800 mm - 45 modules
Product Kit IdentifierN
Adjustmentadjustable in depth every 25 mm
Rack Coveragecomplete
Opening Of The 19 Racks2reversible 120 °
Opening Of The 19 Racks5reversible 120 °
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- 19" rack
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 2101 mm
