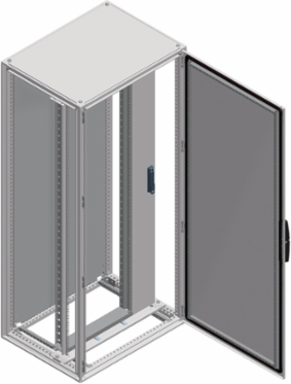

Schneider Electric NSYRSW27 19 Inch Swing Rack - 1400x800 mm, 27 Modules, Steel, Zinc Coated
Schneider Electric NSYRSW27 19 Inch Swing Rack - 1400x800 mm, 27 Modules, Steel, Zinc Coated
- MPN: NSYRSW27
- PPN: SCH-NSYRSW27
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2381.55/ EA
Description
Designed for versatility and efficiency, the 19" swing rack from Schneider Electric is an ideal solution for electronic applications requiring a robust mounting system. With dimensions of 1400x800 mm and a depth of 1301 mm, this rack accommodates up to 27 modules while allowing for adjustable depth every 25 mm, ensuring a perfect fit for your specific needs. Crafted from durable steel with a zinc-coated finish, it provides a permanent permissible load of 3.75 kg per unit, supporting a maximum total load of 150 kg, making it suitable for a variety of installations. The rack features a reversible opening at 120°, enhancing accessibility, while the off-centered rack position and handle with ball lock ensure secure and convenient operation. Ideal for use in floor-standing enclosures, this swing rack is a reliable choice for professionals in automation, control, and data communication sectors.
Features
- To be coupled to enclosures with widths of 800 mm.
- Can be moved depthwise with a pitch of 25 mm.
- Reversible opening direction: Left/right.
- Locking system, top and bottom, with 5-mm double-bar key.
- Maximum opening: 130° (option of opening to 180° using 180° hinges).
- Material: Zinc-coated steel and steel painted
- Maximum load: 3.75 kg/unit with a max of 150 kg Installation
- PanelSet SF - SM
- Other mounting options: Consult us Maximum equipment installation depth:
- Off-center 19" swing rack: 470 mm
Specifications
Physical Attributes
- Color
- side plate Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 800 mm swing rack supports, 1 hinged rack, 1 side lid with handle
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- electronic application
- Lock Type
- handle with ball lock
- Mounting Location
- on structure of enclosure
- Permanent Permissible Load
- 3.75 kg per unit with a maximum of 150 kg
- Product Or Component Type
- 19" rack
- Rack Type
- swing
- Returnability
- No
- Sustainable Packaging
- No
- Medium Desc
- Spacial SF/SM 19" swing rack - 1400x800 mm - 27 modules
- Product Kit Identifier
- N
- Adjustment
- adjustable in depth every 25 mm
- Rack Coverage
- complete
- Opening Of The 19 Racks2
- reversible 120 °
- Opening Of The 19 Racks5
- reversible 120 °
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1400 mm, - H: 1400 mm, - H: 1400 mm, - H: 1400 mm
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Fixing Modeby fixing element
Materialsteel
Package Weight Lbs22.000 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
RangePanelSeT
Surface Finishzinc coated
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1109023EN
Enclosure Cubicle Descriptionfloor-standing enclosure
Rack Positionoff-centered
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- 19" rack
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 1301 mm
