Mersen 1MSC104 Semiconductor Fuse Block, 1 Pole, 600 VDC, Screw Mount, Phenolic Body, Heat Dissipation
- MPN: 1MSC104
- UPC: 782001272784
- PPN: FER-1MSC104
CAD
$489.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

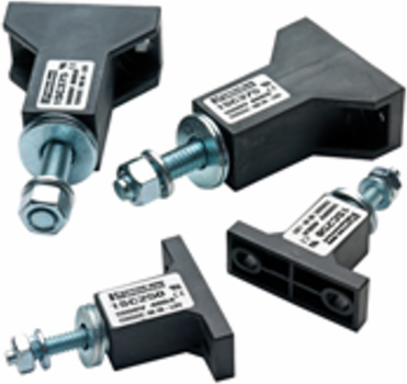

Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse. Mounting hardware is supplied with the blocks
Features
- Modular two-piece design
- Rugged phenolic insulators
- Accommodates a large range of semiconductor fuses
- Stud versions
- Heat dissipating integral box connector versions
- Compact footprint
Specifications
Product Details
- Number of Poles
- 1
- Lead Free
- Consult Technical Services
- SCCR
- 200 kA
- Body Material
- Phenolic
- Wiring Range
- Al/Cu (2) 250kcmil - #6 AWG, Al/Cu 2/0 - #6 AWG
- Materials Contact
- Aluminum
- AC Voltage
- 600 VAC
CE conformityConsult Technical Services
DC Voltage600 VDC
UL CertificationE171957 IZLT2.E171957
MountingScrew Mount
Connection Terminal TypeBox
ROHS CompliantConsult Technical Services
StandardsUL Recognized Component to standard 4248-1, File E171957
