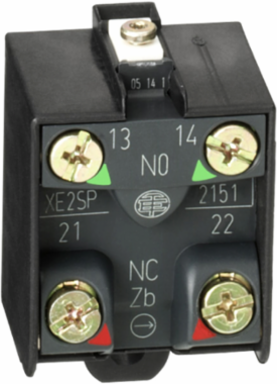

Telemecanique Sensors XE2SP2251 Limit switch contact block, Limit switches XC Standard, 1 NO + 1NC 240 Vac 3 A
- MPN: XE2SP2251
- PPN: TES-XE2SP2251
- UNSPSC: 39121522
CAD
$55.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch contact block, Limit switches XC Standard, 1 NO + 1NC 240 Vac 3 A
Documentation & Downloads
Specifications
Key Specifications
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch contact block |
| Device Short Name | XE2S |
| Contacts Type And Composition | 1 NO + 1 NC |
|---|---|
| Contact Operation | snap action |
| Associated Body | ZCKJ1 || ZCKL1 || ZCP21 || ZCD21 || ZCKS1 || ZCKM1 || ZCKJ1D |
| Number Of Poles | 2 |
Complementary
| Electrical Connection | screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
|---|---|
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| Contacts Insulation Form | Zb |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Minimum Actuation Speed | 0.01 mm/s |
| Contacts Material | silver plated contacts |
| Product Compatibility | XCKJ || XCKP || XCKD || XCKS || XCKL || XCKM || XCR |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
