Tripp Lite B098-016 16-Port Console Server, Dual GbE NIC, 16 Gb Flash, USB & Wi-Fi, TAA-Compliant
- MPN: B098-016
- UPC: 037332218056
- PPN: TRP-B098-016
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

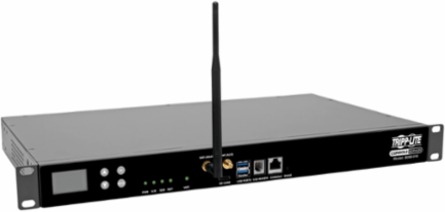

16-Port Console Server, Dual GbE NIC, 16 Gb Flash, USB & Wi-Fi, TAA-Compliant
Features
- Manage routers, UPS systems and other serial-based equipment from anywhere 24/7
- Validated to meet FIPS 140-2 standards to ensure utmost protection of private data
- Dual Gigabit Ethernet ports for primary network connection and automatic failover
- Designed for standard Cat5e/6 patch cable when connecting to Cisco devices
- Included Wi-Fi feature supports either Client or Access Point (WAP) mode
- 4-year limited warranty
- Access All Your Serial and Network Devices from Anywhere in the World at Any Time
- Simple and Flexible Accessibility
- Connect the Built-In V.92 Modem for Out-of-Band (OOB) Access
- Wi-Fi Diversity Antenna Included
- Router/Gateway
- The Utmost in Security to Keep Your Sensitive Data Private
- PowerMan PDU and UPS Support
- USB Console
- Compact Design for Convenient Mounting
- TAA-Compliant for GSA Schedule Purchases
Documentation & Downloads
Specifications
Additional
- Ports
- 16
- Power Consumption
- 15 Watts
- Voltage Compatibility
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 VAC
- Technology
- Serial (RS232)
- IEEE Standards Supported
- 802.3; 802.3ab; 802.3ad
- Port Selection
- CLI; GUI
- Operating Temperature Range
- 41 to 122 F (5 to 50 C)
- Relative Humidity
- 5% to 90%, Non-Condensing
- Unit Weight
- 10 lbs (4.54 kg)
- Side A - Connector 1
- (2) USB A (FEMALE)
- Side A - Connector 3
- SD (FEMALE)
- Side B - Connector 1
- (16) RJ45 (FEMALE)
- Side B - Connector 3
- (2) SFP (FEMALE)
- Driver Required
- No
- Serial Console Ports
- 16 x RJ45
- Material
- Metal
- Wi-Fi Frequency
- 2.4 GHz
- SD Card Support
- Yes
- Multi-User
- Yes
- Power Cords
- (2) C13 to NEMA 5-15P, 6 ft
- Compliance
- TAA-Compliant; FIPS 140-2 Validated
Network Speed1 Gbps
BTU Output51.2 BTU/Hr
Authentication SupportedRADIUS; LDAP; TACACS
ModemBuilt-In V.92 RJ11 for Out-of-Band Access
Redundancy - Dual Power InputsYes
IP Remote AccessYes
Storage Temperature Range-22 to 140 F (-30 to 60 C)
Dimensions (HxWxD)1.75 x 17 x 10 in
Power Input ReceptacleIEC-320-C14
Side A - Connector 2RJ45 (FEMALE)
Side A - Connector 4RJ11 (FEMALE)
Side B - Connector 2(2) RJ45 (FEMALE)
RackmountableYes (1U rackmount, desktop with rubber feet)
USB Console Ports2 x USB 2.0 Type A
Additional Network Ports2 x RJ45, 2 x SFP
Flash Memory16 Gb
Wi-Fi AntennaSMA Diversity
ColorBlack

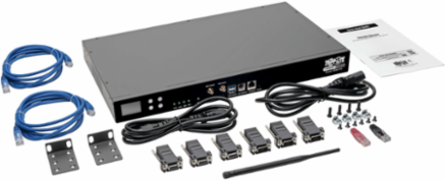

Cable Included(2) Cat5 patch cables, 6 ft
Warranty4-year limited warranty
