Tripp Lite PDUMH15HVAT 2.4kW Single-Phase Metered PDU, 1U, 10 C13 Outputs, TAA Compliant
- MPN: PDUMH15HVAT
- UPC: 037332197900
- PPN: TRP-PDUMH15HVAT
CAD
$1030.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Enables redundant power for non-redundant single-corded network devices. Digital display helps monitor load levels to prevent overloads that cause costly downtime.
Features
- Single-phase IEC-320 C14 input and 200–240V output
- 10 C13 outlets
- Automatic transfer switching within 5 ms
- Mounts in 1U of space in EIA-standard 19 in. racks
- Digital load meter for real-time output current monitoring
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Output Capacity
- 2.4 kW (240V), 2.3 kW (230V), 2.2 kW (220V), 2.08 kW (208V), 2.0 kW (200V) / 10A total capacity
- Input Phase
- Single-Phase
- Maximum Input Amps
- 10 A
- Input Cord Length
- 12 ft (2 x 3.6 m)
- Dimensions (HxWxD)
- 1.71 x 17.33 x 14.45 in
- Minimum Required Rack Depth
- 18.3 in
- Form Factor
- Horizontal (1U)
- Compliance
- UL 60950-1, CE, NOM, GOST, FCC Class A, RoHS, TAA Compliant
- Relative Humidity
- 5-95% non-condensing
- Network Management Cards
- Supports SNMPWEBCARD and WEBCARDLX (sold separately)
Voltage200; 208; 220; 230; 240 V
Frequency50/60 Hz
Output Receptacles10 C13

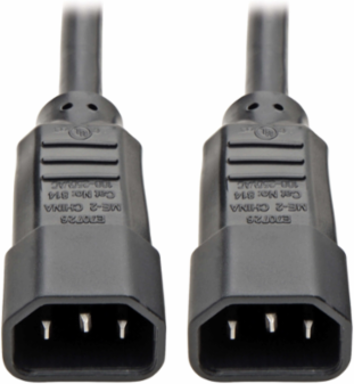

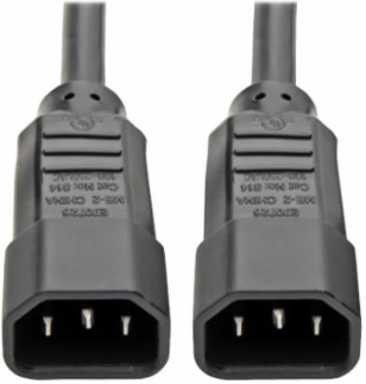

Input Cord TypeIEC-320 C14 (2 cords)
Weight10.32 lbs (4.68 kg)
Mounting1U, EIA-standard 19 in. racks
MaterialSteel
Storage Temperature Range-30°C to 50°C (-22°F to 122°F)
Operating Elevation0-10,000 ft (0-3000 m)
Warranty2-year limited warranty
